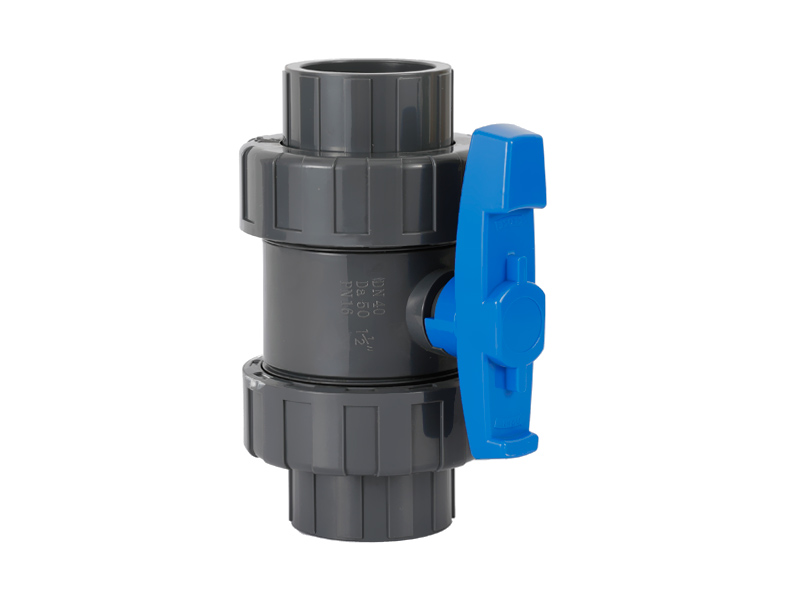

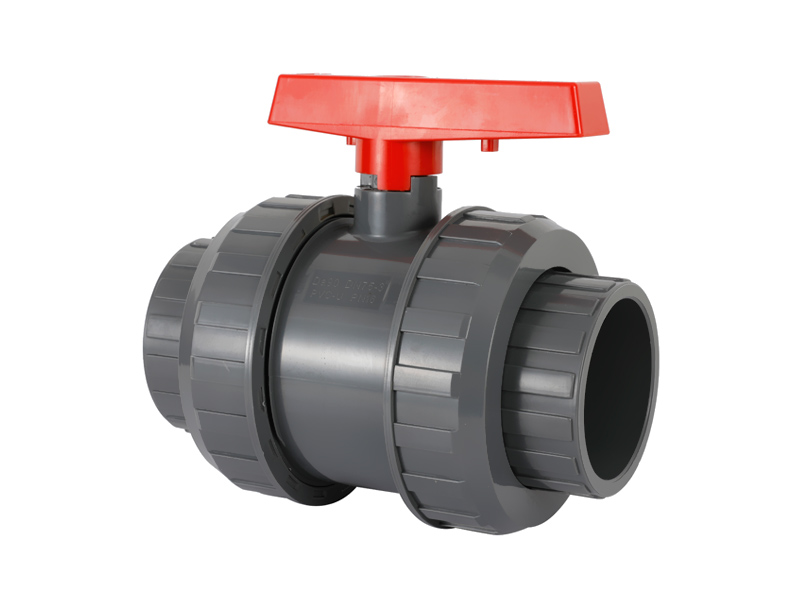

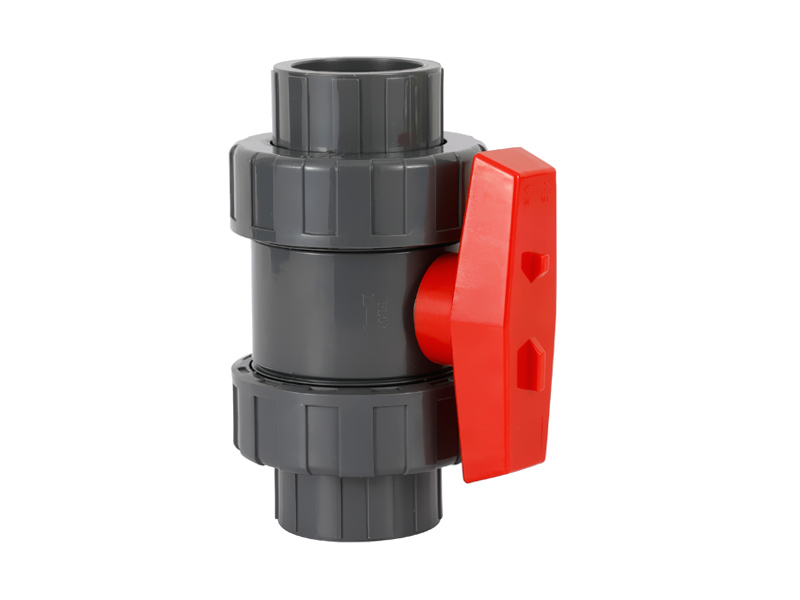

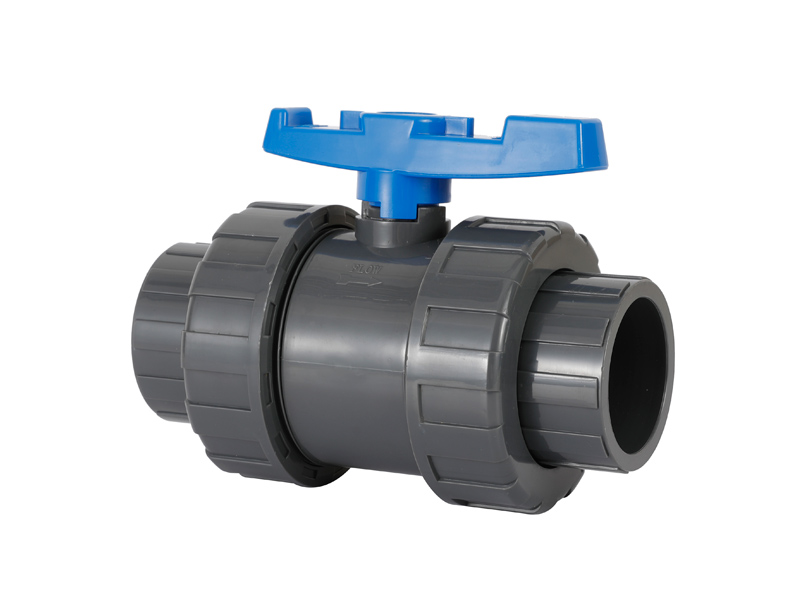

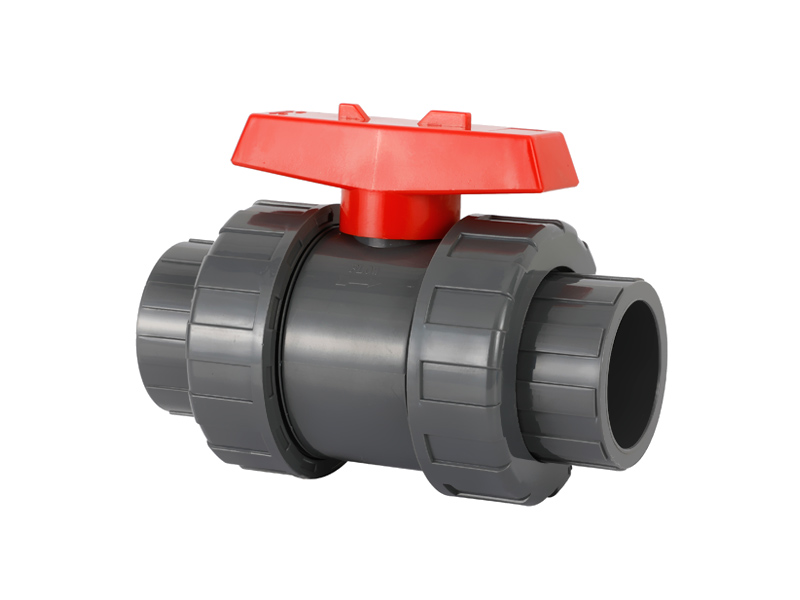

Plastic UPVC Double True Union Water Ball Valve Details

Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE01021-XE01026
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
ITEM SIZE
XE01021 1/2"
XE01022 3/4"
XE01023 1"
XE01024 1-1/4"
XE01025 1-1/2"
XE01026 2"
XE01027 2-1/2"
XE01028 3"
XE01029 4"
Type: BALL VALVES
Place of Origin: Zhejiang, China
Brand Name: XE
Application: other
Temperature of Media: Normal Temperature
Power: manual
Media: WATER/WEAK ACID/WEAK BASE
Structure: shutoff
Sort: upvc true union ball valve
Standard or Nonstandard: standard
Logo: Printed or Customized
Material: U-PVC
1. Environment friendly, non-toxic, good looking;
2. Light weight, easy to handle and transport;
3. Soft colors and excellent design, suitable for installation either exposed or hidden;
4. Wonderful ability in chemical corrosion resistance;
5. Easy and fast installation, making cost minimized;
We can produce the products according to client's order, just as the standard, the quality, the size, the color, etc.

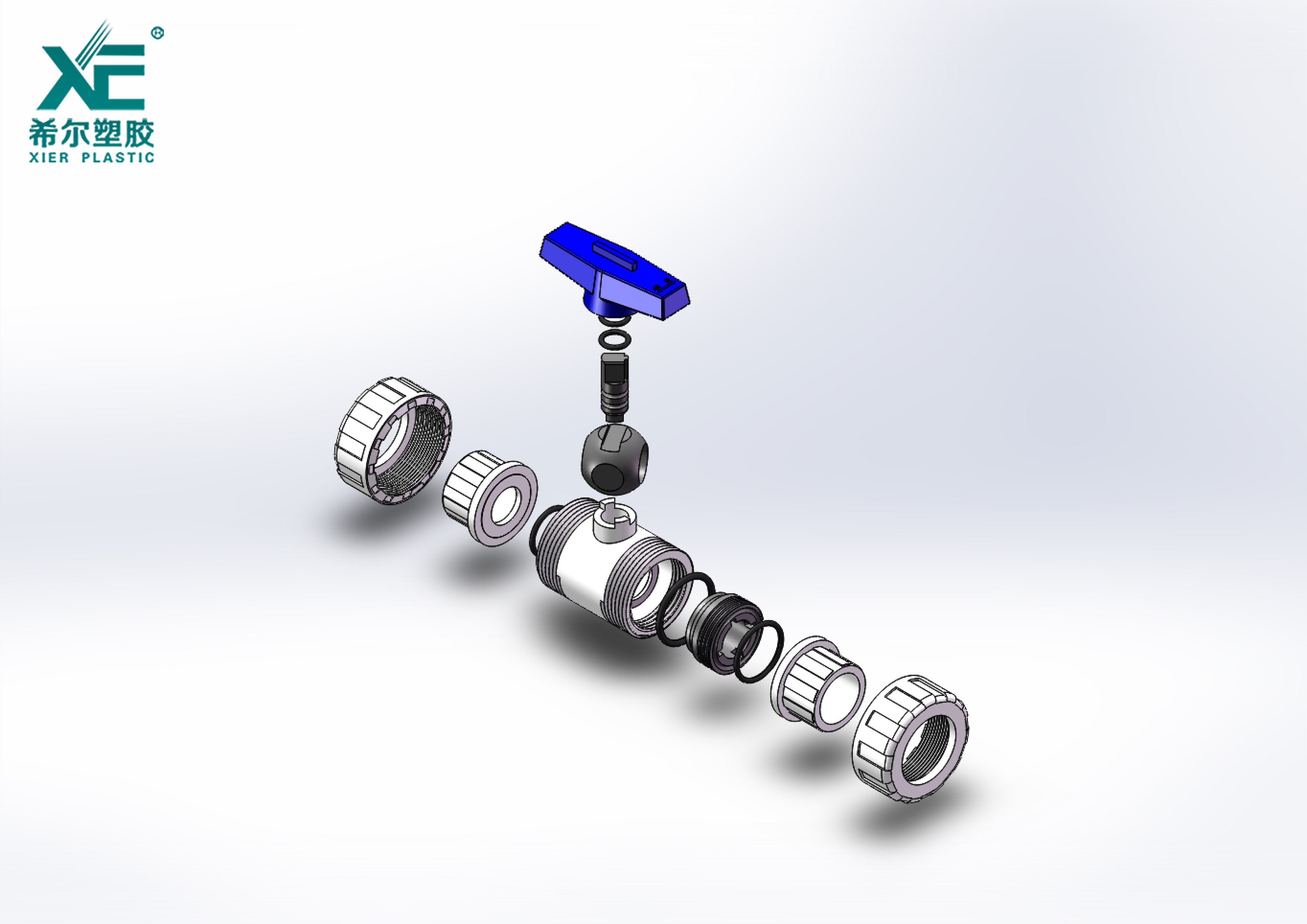

UPVC TRUE UNION BALL VALVE XE01021 - XE01029
NO. PART MATERIAL QTY SIZE STANDARD
1 BODY U-PVC 1 1/2", 3/4", 1", 1-1/4",
1-1/2", 2", 2-1/2", 3", 4"
CNS, JIS, DIN, BS,
ANSI, NPT, BSPT
2 SEAT SEAL TPE 2
3 BALL U-PVC 1
4,10,11 O-RING NBR 2
5 HANDLE ABS 1
6 STEM U-PVC 1
7 SEAT CARRIER U-PVC 1
8 UNION NUT U-PVC 2
9 END CONNECTOR U-PVC 2
