Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE01091-XE01099
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
CODE      SIZE
XE01091   1/2"
XE01092   3/4"
XE01093   1"
XE01094   1-1/4"
XE01095   1-1/2"
XE01096   2"
XE01097   2-1/2"
XE01098   3"
XE01099   4"
Type: BALL VALVES
Place of Origin: Zhejiang, China
Brand Name: XE
Model Number: XE01091-XE01099
Application: other
Temperature of Media: Normal Temperature
Power: manual
Media: WATER/WEAK ACID/WEAK BASE
Port Size: 1/2"-4"
Structure: shutoff
Standard or Nonstandard: standard
Color: Many colors available for choice
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Sample: free provided
Logo: Printed or Customized
Packing: Carton, Polybag, Color Box or Customized
Certificate: ISO9001:2015, SGS, GMC, CNAS
Keyword: pvc ball valve
Material:
1). Body: PVC
2). Handle: Stainless Steel
3). Ball: ABS, Plating, Copper
4). Stem: Copper
5). Seat Seal: TPE, TPV
6). Bolt: Steel
1. Environment friendly, non-toxic, good looking;
2. Light weight, easy to handle and transport;
3. Soft colors and excellent design, suitable for installation either exposed or hidden;
4. Wonderful ability in chemical corrosion resistance;
5. Easy and fast installation, making cost minimized;

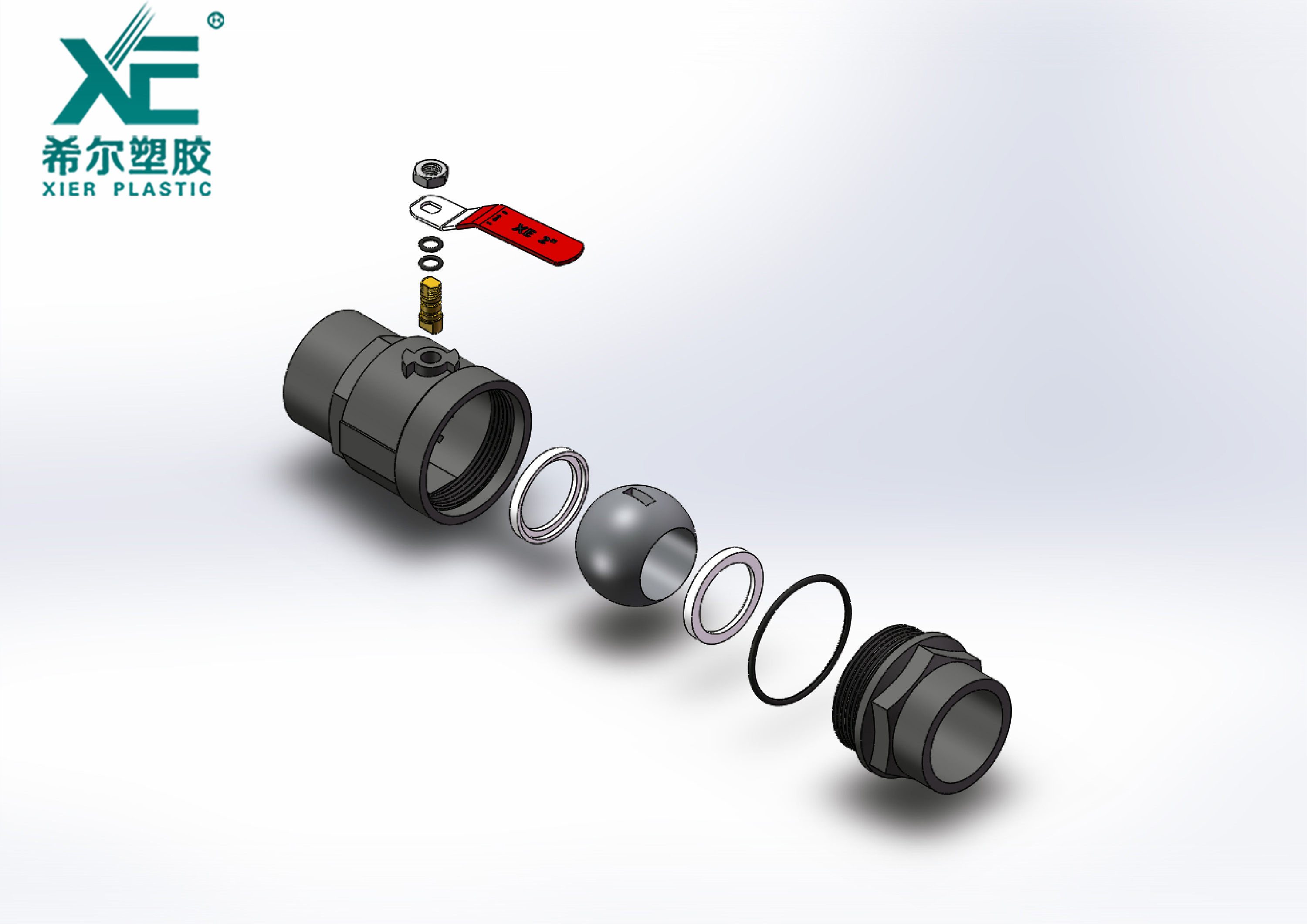

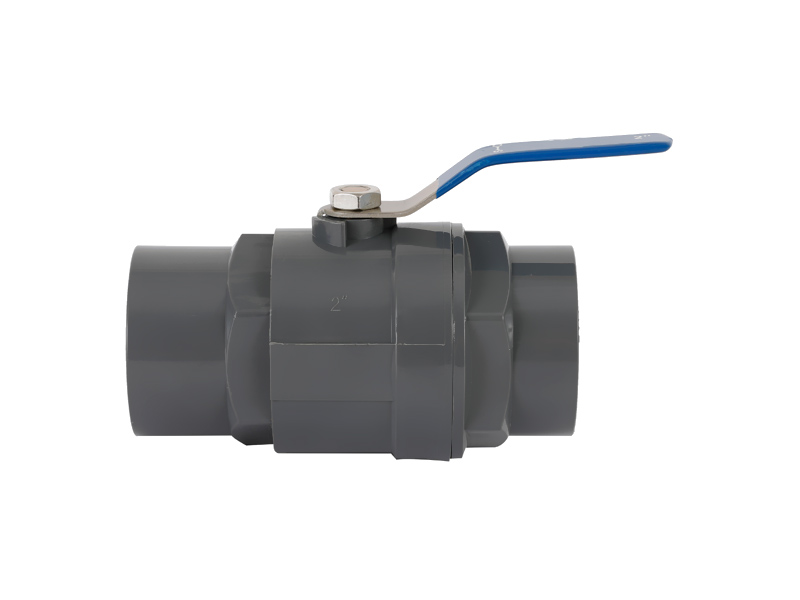

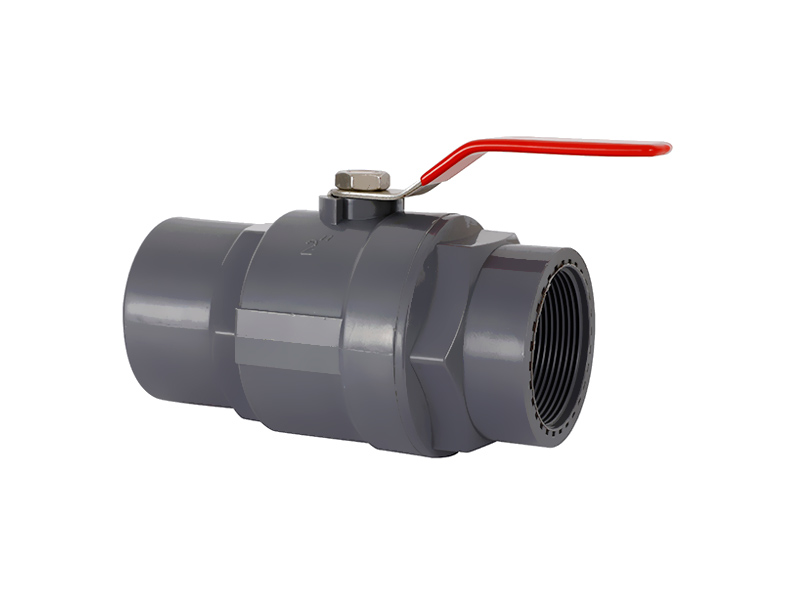

Handle Plastic PVC 2 Pieces Ball Valve Details

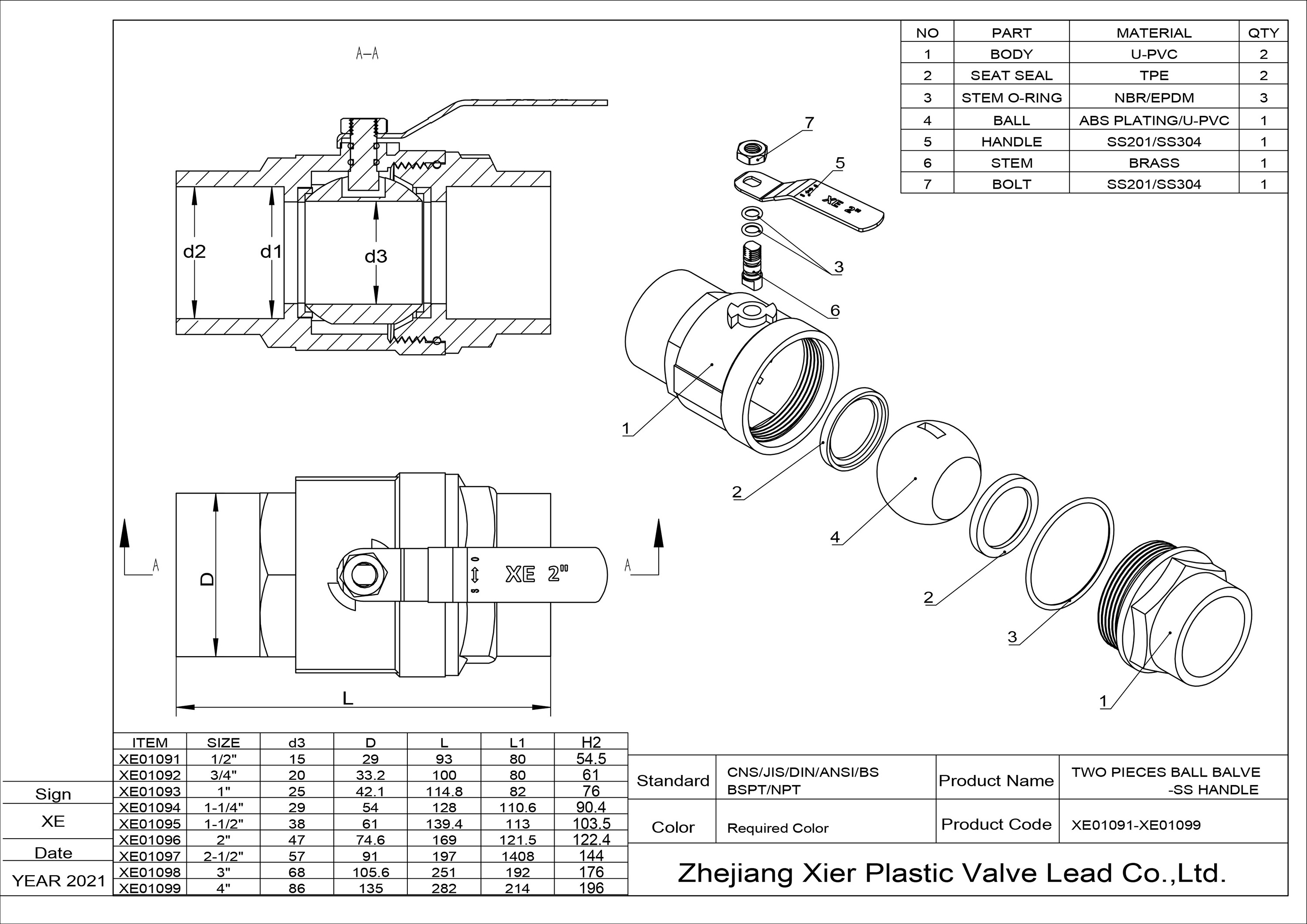

UPVC TWO PIECES BALL VALVE - SS HANDLE XE01091-XE01099
NO. PART MATERIAL QTY SIZE STANDARD
1 BODY U-PVC 1 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" CNS, JIS. DIN, BS, ANSI, NPT, BSPT
2 SEAT SEAL TPE 2
3 STEM O-RING NBR 1
4 BALL ABS PLATING CHROM 1
5 HANDLE SS201 1
6 STEM BRASS 1
7 BOLT SS201 1
