Normal Pressure Pump UPVC Foot Valve Details

Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE02011-XE02018
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
ITEM           SIZE
XE02011      3/4"
XE02012     1"
XE02013     1-1/4"
XE02014     1-1/2"
XE02015     2"
XE02016     2-1/2"
XE02017     3"
XE02018     4"
Type: Foot Valves
Place of Origin: Zhejiang, China
Brand Name: XE
Application: other
Temperature of Media: Normal Temperature
Power: manual
Media: WATER/WEAK ACID/WEAK BASE
Port Size:( XE02011-XE02013)3/4"-1-1/4",(XE02014-XE02015)1-1/2"-2",(XE02016-XE02018)2-1/2"-4"
Structure: shutoff
Standard or Nonstandard: standard
Color: Many colors available for choice
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Sample: free provided
Logo: Printed or Customized
Packing: Carton, Polybag, Color Box or Customized
Certificate: ISO9001:2015, SGS, GMC, CNAS<
Keyword: foot valve pvc
1. Environment friendly, non-toxic, good looking;
2. Light weight, easy to handle and transport;
3. Soft colors and excellent design, suitable for installation either exposed or hidden;
4. Wonderful ability in chemical corrosion resistance;
5. Easy and fast installation, making cost minimized;

We can produce the products according to client's order, just as the standard, the quality, the size, the color, etc.

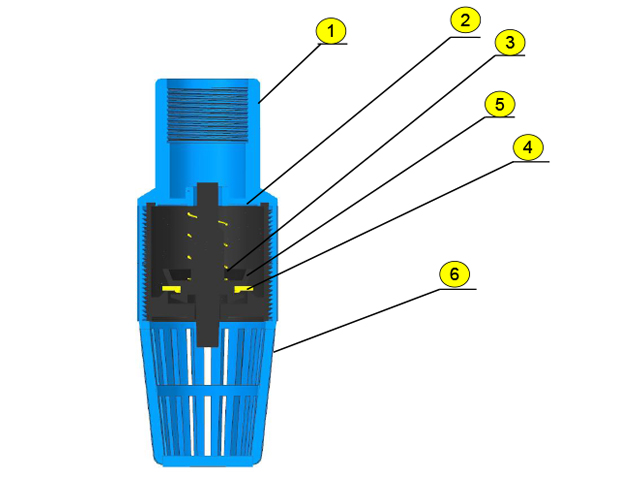

UPVC FOOT VALVE XE02011-XE02018
NO. PART MATERIAL QTY
1 BODY U-PVC 1
2 SRING SS201 1
3 GATE U-PVC 1
4 SEAT SEAL TPE 1
5 BODY U-PVC 1
