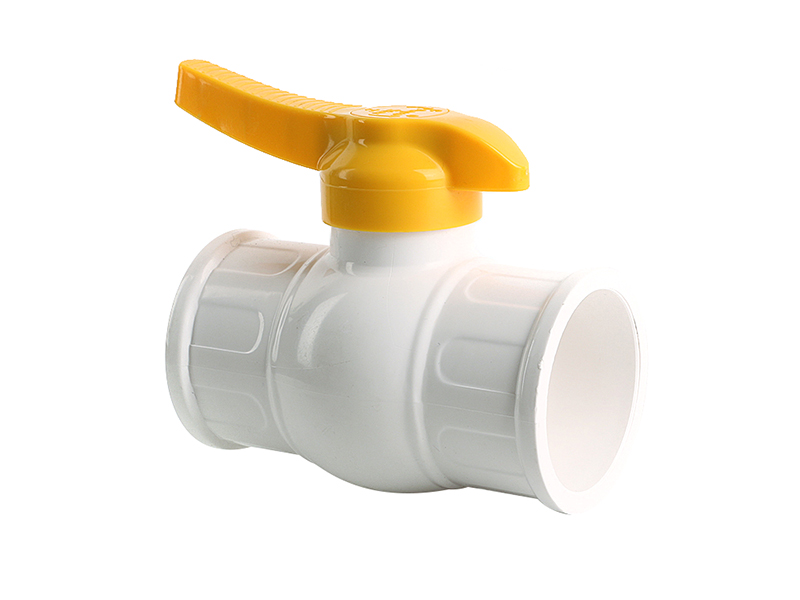

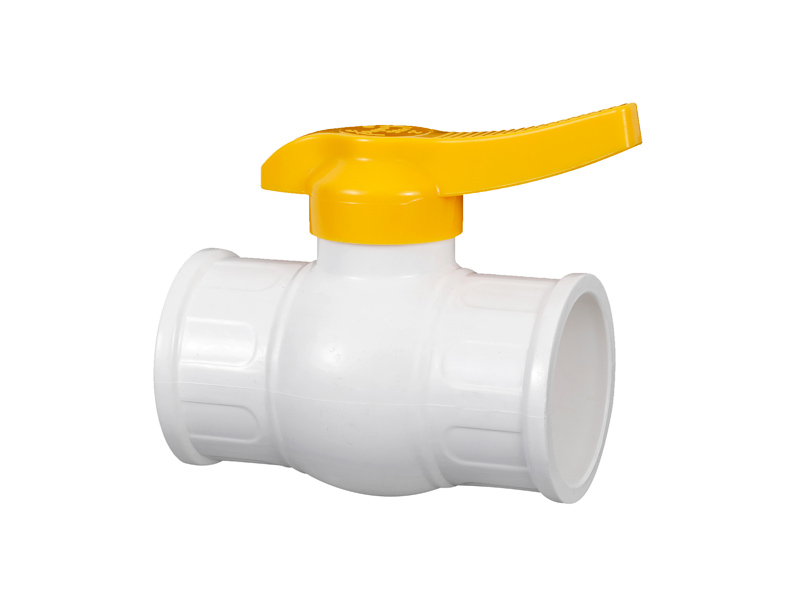

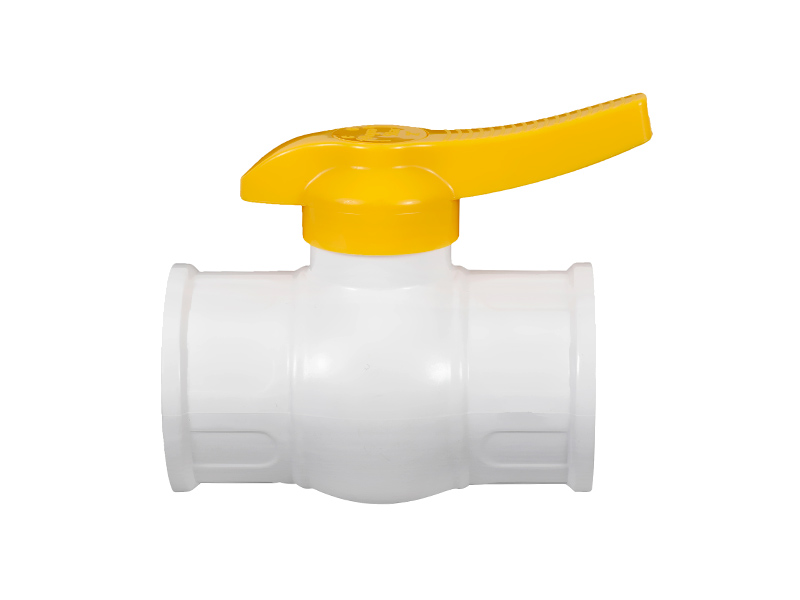

1/2-2 Inch Plastic UPVC Irrigation Water Thicker End Ball Valve With Yellow Handle Details

Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE05051-XE05056
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
ITEM SIZE
XE02051 1/2"
XE02052 3/4"
XE02053 1"
XE02054 1-1/4"
XE02055 1-1/2"
XE02056 2"
Type: BALL VALVES
Place of Origin: Zhejiang, China
Brand Name: XE
Application: General
Temperature of Media: Normal Temperature
Power: Manual
Media: WATER/WEAK ACID/WEAK BASE
Port Size: 1/2"-2"
Structure: Shutoff
Color: Many colors available for choice
Logo: Printed or Customized
Sort: pvc ball valve with yellow handle

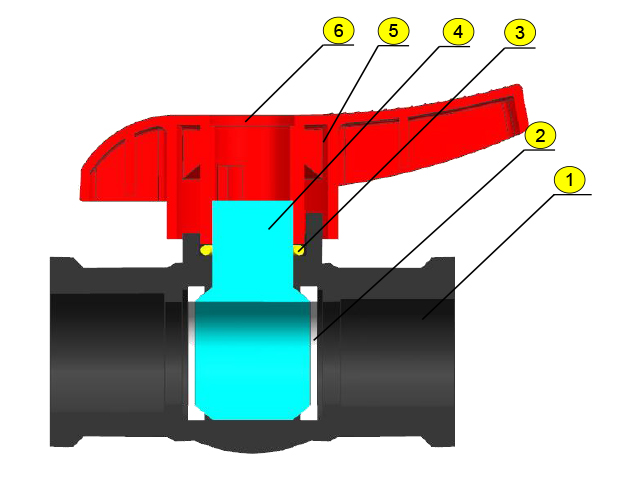

UPVC THICKER END BALL VALVE XE05051 - XE05056
NO. PART MATERIAL QTY SIZE STANDARD
1 BODY U-PVC 1 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" DIN, NPT, BSPT
2 SEAT SEAL TPE 2
3 STEM O-RING NBR 1
4 BALL PP 1
5 HANDLE ABS/U-PVC 1
6 CAP ABS 1
