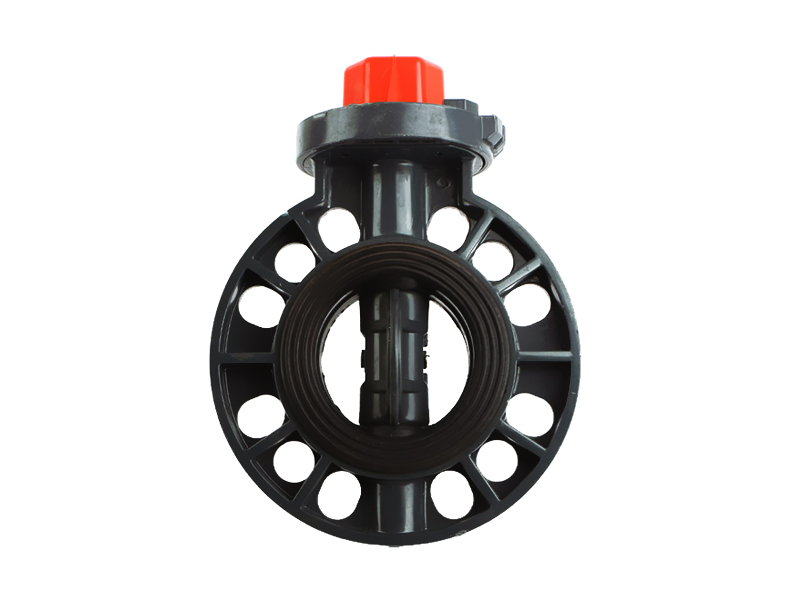

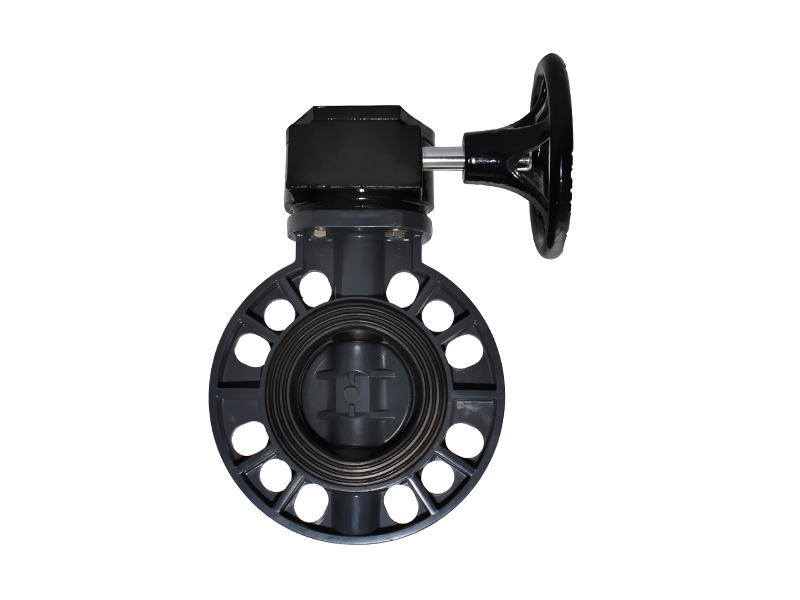

Standard Plastic Water Butterfly Valve Details

Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE01041-XE01047
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
Place of Origin: Zhejiang, China
Brand Name: XE
Model Number: XE01041-XE01047
Application: other
Temperature of Media: Normal Temperature
Power: manual
Media: WATER/WEAK ACID/WEAK BASE
Port Size: 2"-8
Structure: shutoff
Standard or Nonstandard: standard
Color: Many colors available for choice
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Sample: free provided
Logo: Printed or Customized
Packing: Carton, Polybag, Color Box or Customized
Certificate: ISO9001:2015, SGS, GMC, CNAS
1.Environment friendly, non-toxic, good looking;
2. Light weight, easy to handle and transport;
3. Soft colors and excellent design, suitable for installation either exposed or hidden;
4. Wonderful ability in chemical corrosion resistance;
5. Easy and fast installation, making cost minimized;
We can produce the products according to client's order, just as the standard, the quality, the size, the color, etc.

NO. PART MATERIAL
1 BODY PVC/CPVC/PPG
2 SEAT EPDM/FPM
3 DISC PVC/CPVC/PPG
4 O-RING EPDM/FPM
5 STEM STEEL/420/304/316
6 LOCKING BLOCK PVC
7 INDICATOR PLEAT ABS/PP
8 BOLT STEEL
9 BOLT COVER ABS/PP
10 HANDLE ABS
11 SPRING 304
12 LEVER ABS
13 PIN STEEL
14 BOLT STEEL
15 MARK CAP ABS

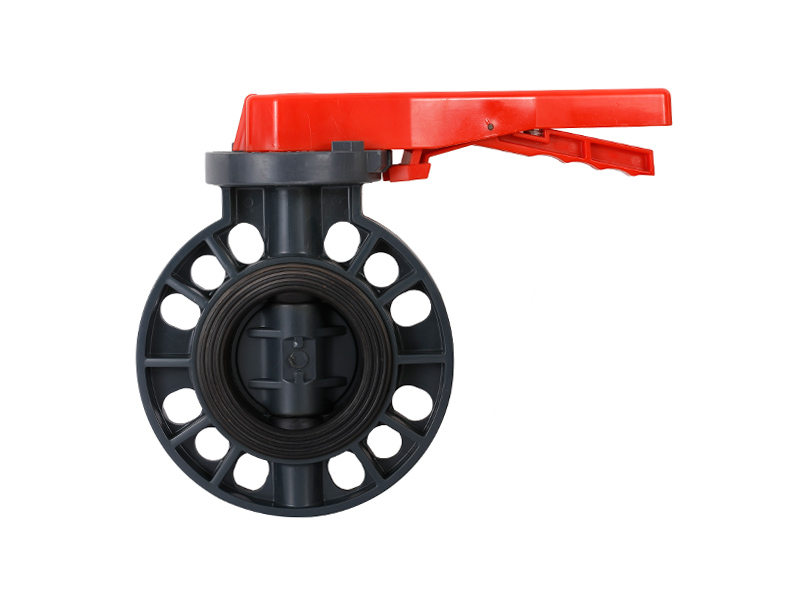

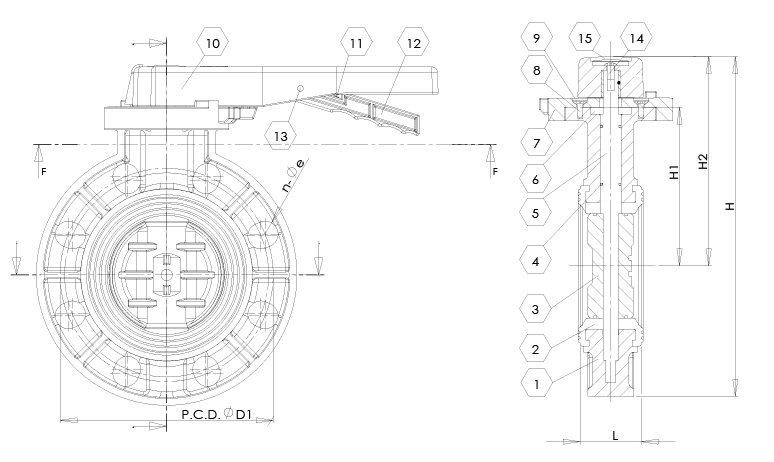

[Lever Type]
SIZE " 2" 21/2" 3'' 4" 5" 6" 8"
DN 50 65 80 100 125 150 200
ØD 160 180 196 228 258 287

344

P.C.D.
ØD1
DIN 125 145 160 180 210 240 295
ANSI 121 140 152 191 216 241 298
JIS 120 140 150 175 210 240 290
Ød 48 63 78 98 122 146 199
L 43 46 49 54 64 70 88
Ø1 124 124 124 124 170 170 170
Ø2 F05/07 F05/07 F05/07 F05/07 F07/10 F07/10 F10
L1 190 190 240 240 310 310 310
W 55 55 55 55 72 72 72
H1 100 112 120 140 168 181 215
H2 143 155 172 194 223   280
H 223 245 270 308 352   452
n-Øe DIN 4-Ø19 4-Ø19 8-Ø19 8-Ø19 8-Ø19 8-Ø23 8-Ø23
ANSI 4-Ø19 4-Ø19 4-Ø19 8-Ø19 8-Ø19 8-Ø23 8-Ø23
JIS 4-Ø18 4-Ø19 8-Ø19 8-Ø19 8-Ø19 8-Ø23 12-Ø23
PN PSI 150 150 150 150 150 150 100
MPa 1 1 1 1 1 1 0.6
Weight Kg/PC 1.13 1.35 1.8 2.4 4.2 4.75 7.6
Torque N.M ﹤10 ﹤10 ﹤15 ﹤25 ﹤40 ﹤55 ﹤70
