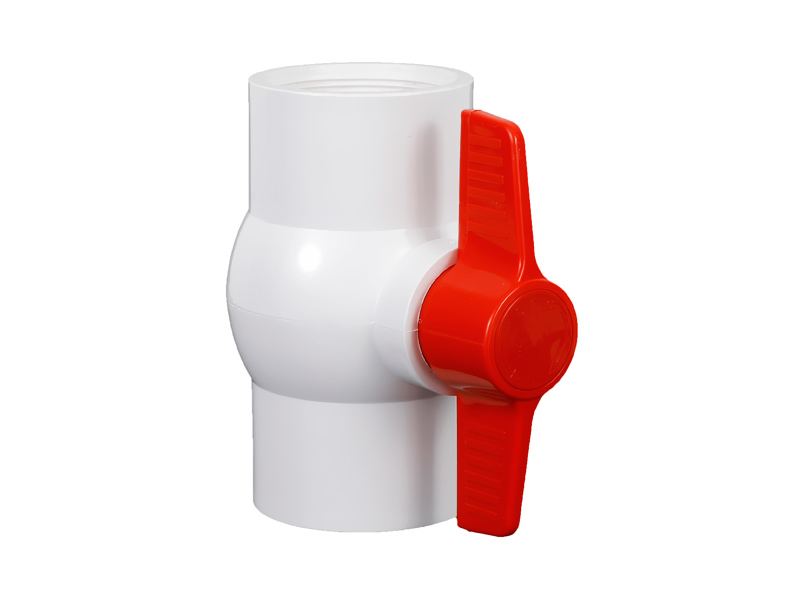

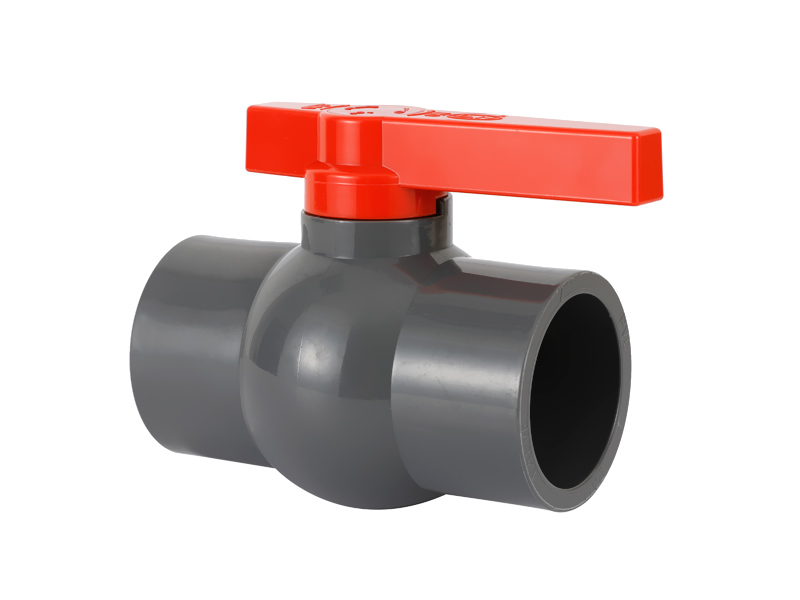

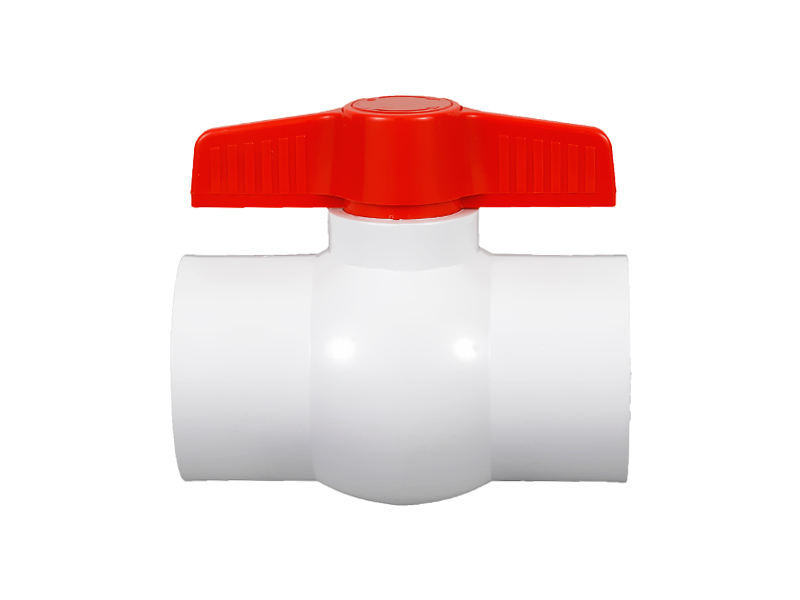

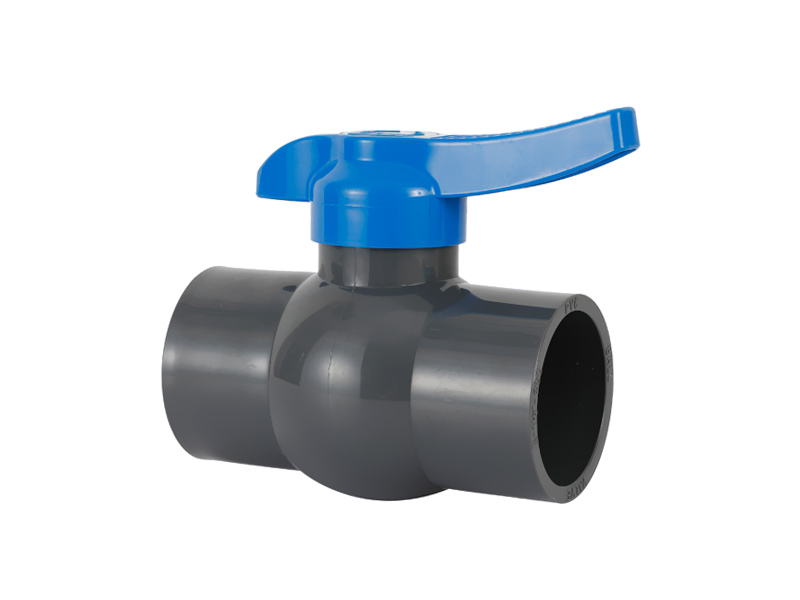

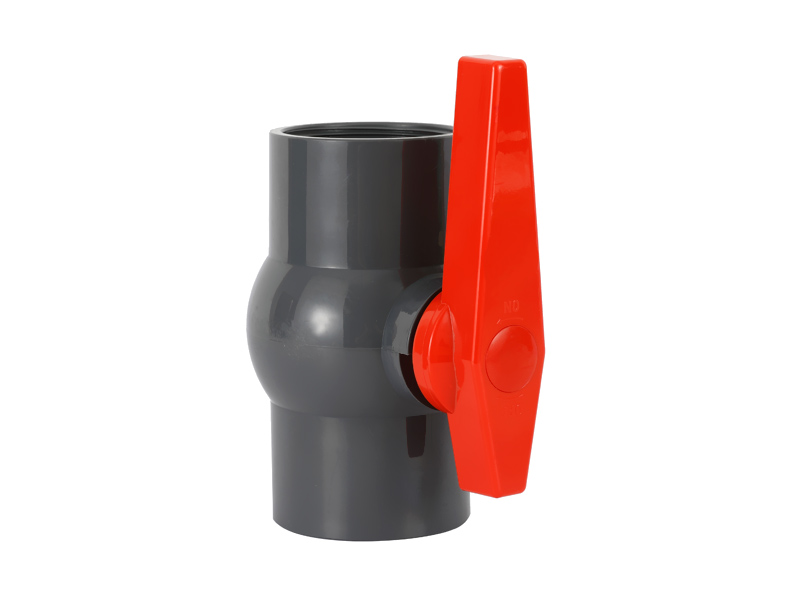

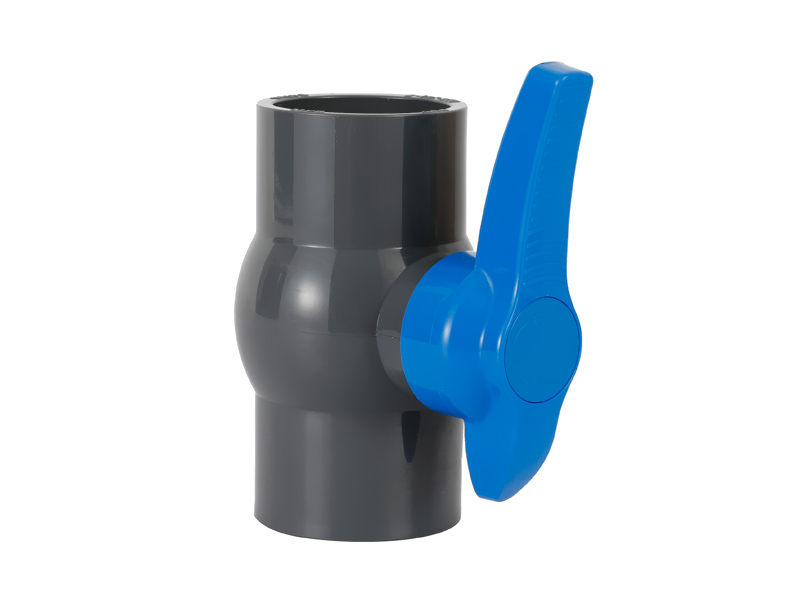

UPVC COMPACT BALL VALVE Details

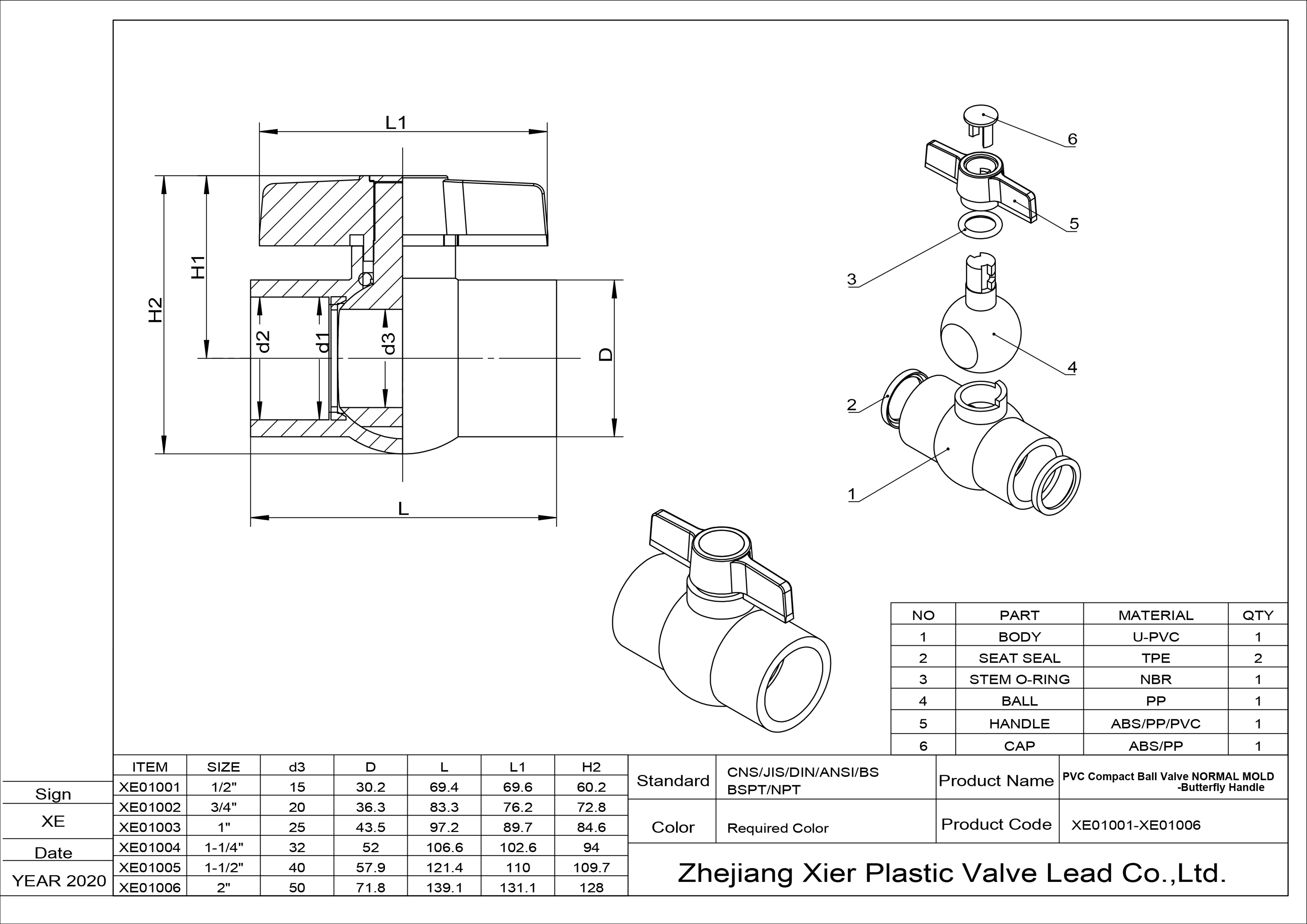

UPVC COMPACT BALL VALVE XE01001-XE01006
NO. PART MATERIAL QTY SIZE STANDARD
1 BODY U-PVC 1 1/2", 3/4", 1", 1-1/4",
1-1/2", 2"
CNS, JIS, DIN, BS,
ANSI, NPT, BSPT
2 SEAT SEAL TPE 2
3 STEM O-RING NBR 1
4 BALL PP 1
5 HANDLE U-PVC/ABS 1
6 CAP PP 1
