PVC Black Body Pipe Fittings Octagonal Ball Valve With Red Handle Details

Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE02057-XE02059
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
ITEM SIZE
XE02057 2-1/2"
XE02058 3"
XE02059 4"
Type: BALL VALVES
Place of Origin: Zhejiang, China
Brand Name: XE
Application: other
Temperature of Media: 'Normal Temperature
Power: manual
Media: WATER/WEAK ACID/WEAK BASE
Port Size: 2-1/2"-4"
Structure: shutoff
Sort: long handle valve
Standard or Nonstandard: standard
Logo: Printed or Customized
Material: U-PVC
1. Environment friendly, non-toxic, good looking;
2. Light weight, easy to handle and transport;
3. Soft colors and excellent design, suitable for installation either exposed or hidden;
4. Wonderful ability in chemical corrosion resistance;
5. Easy and fast installation, making cost minimized;
We can produce the products according to client's order, just as the standard, the quality, the size, the color, etc.

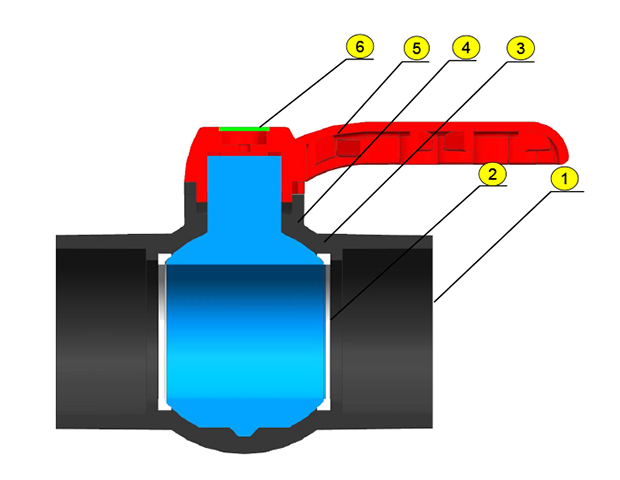

UPVC OCTAGONAL BALL VALVE XE02057 - XE02059
NO. PART MATERIAL QTY SIZE STANDARD
1 BODY U-PVC 1 2-1/2", 3", 4" DIN, NPT, BSPT
2 SEAT SEAL TPE 2
3 STEM O-RING NBR 1
4 BALL PP 1
5 HANDLE U-PVC/ABS 1
6 CAP PP 1
