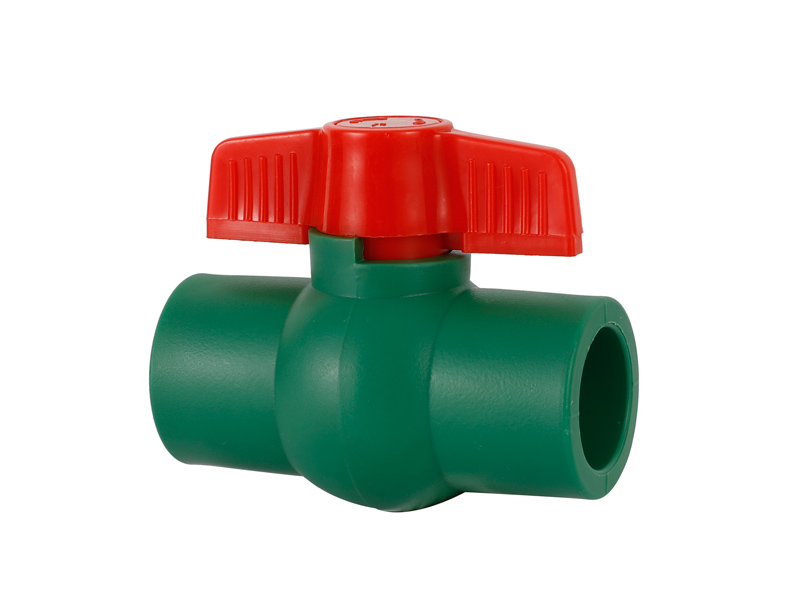

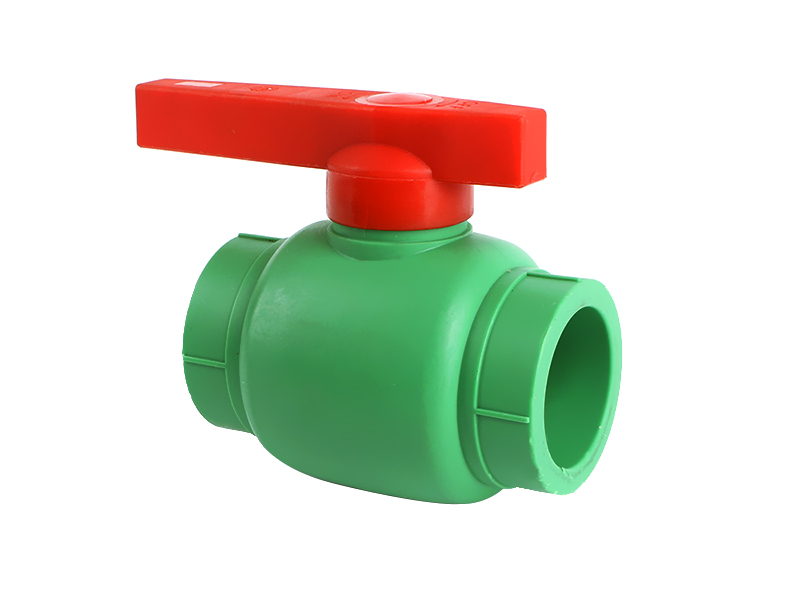

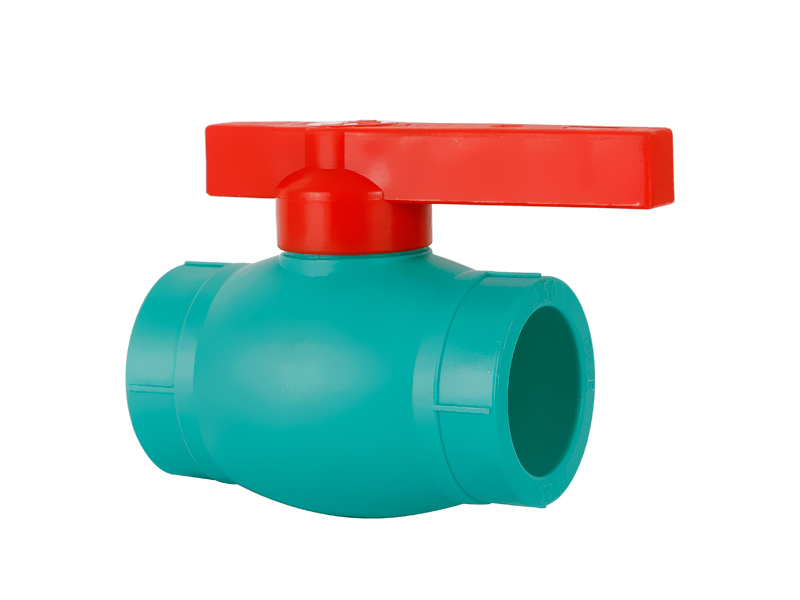

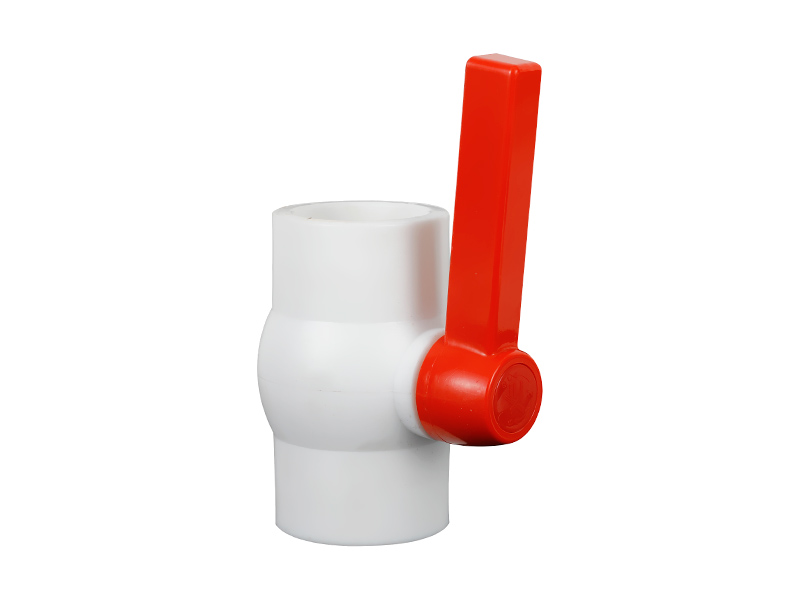

PPR Ball Valve | |||||||

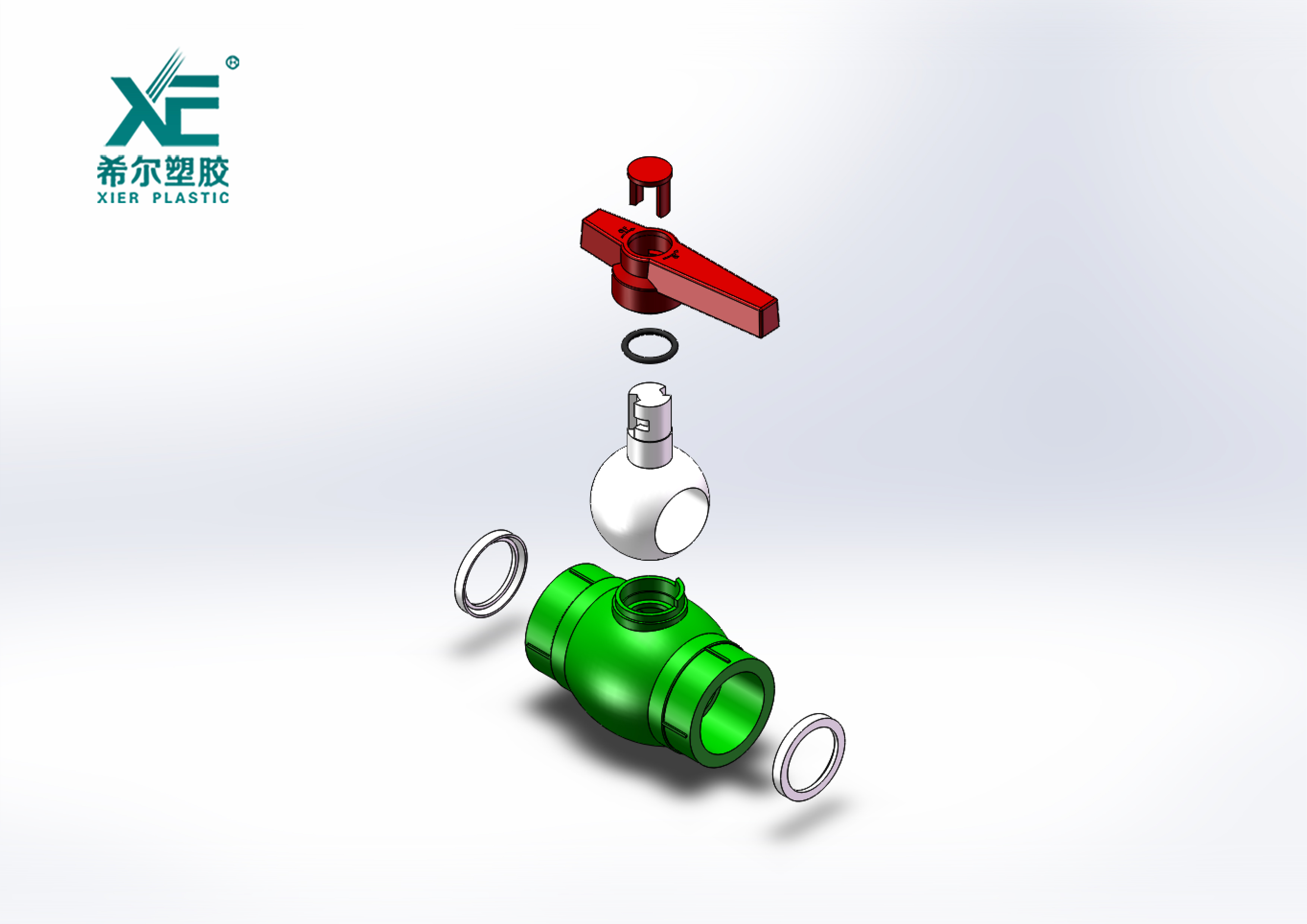

NO. | PART | MATERIAL | QTY | SIZE | STANDARD | ||
1 | BODY | PPR | 1 | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" | DIN | ||
2 | SEAT SEAL | TPE | 2 | ||||
3 | STEM O-RING | NBR | 1 | ||||
4 | BALL | PP/POM/BRASS | 1 | ||||
5 | STEM | PP/BRASS | 1 | ||||
6 | HANDLE | PP | 1 | ||||
7 | CAP | PP | 1 |
Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE01011-XE01016,1071-XE01076,XE04071-XE04076
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
ITEM SIZE
XE01011 1/2"
XE01012 3/4"
XE01013 1"
XE01014 1-1/4"
XE01015 1-1/2"
XE01016 2"
XE01071 1/2"
XE01072 3/4"
XE01073 1"
XE01074 1-1/4"
XE01075 1-1/2"
XE01076 2"
XE04071 1/2"
XE04072 3/4"
XE04073 1"
XE04074 1-1/4"
XE04075 1-1/2"
XE04076 2"
Type: BALL VALVES
Place of Origin: Zhejiang, China
Brand Name: XE
Application: other
Temperature of Media: Normal Temperature
Power: manual
Media: WATER/WEAK ACID/WEAK BASE
Port Size: 1/2"-2"
Structure: shutoff
Standard or Nonstandard: standard
Color: Many colors available for choice
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Sample: free provided
Logo: Printed or Customized
Packing: Carton, Polybag, Color Box or Customized
Certificate: ISO9001:2015, SGS, GMC, CNAS
Keyword: 25mm ppr ball valve, 1/2 inch pvc valve
Material: PPR
Ball: BRASS and PP
1. Environment friendly, non-toxic, good looking;
2. Light weight, easy to handle and transport;
3. Soft colors and excellent design, suitable for installation either exposed or hidden;
4. Wonderful ability in chemical corrosion resistance;
5. Easy and fast installation, making cost minimized, stand high temperature;
We can produce the products according to client's order, just as the standard, the quality, the size, the color
