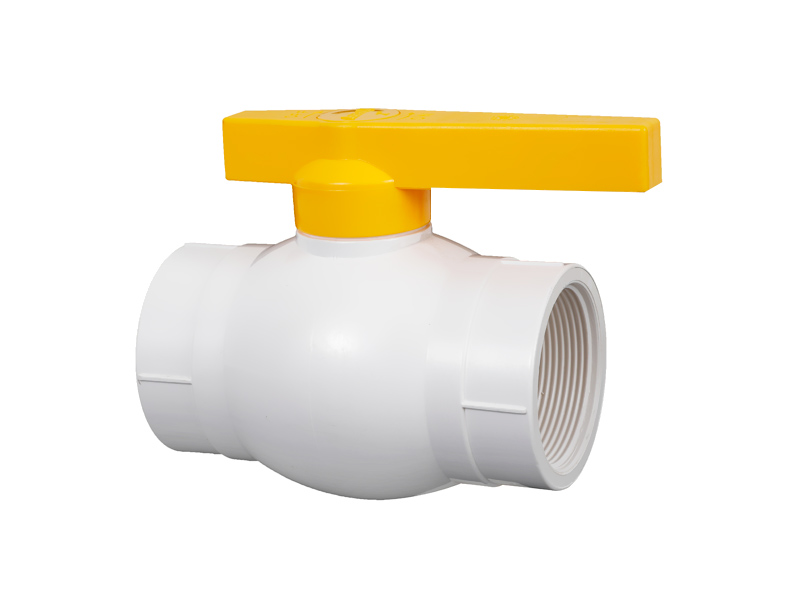

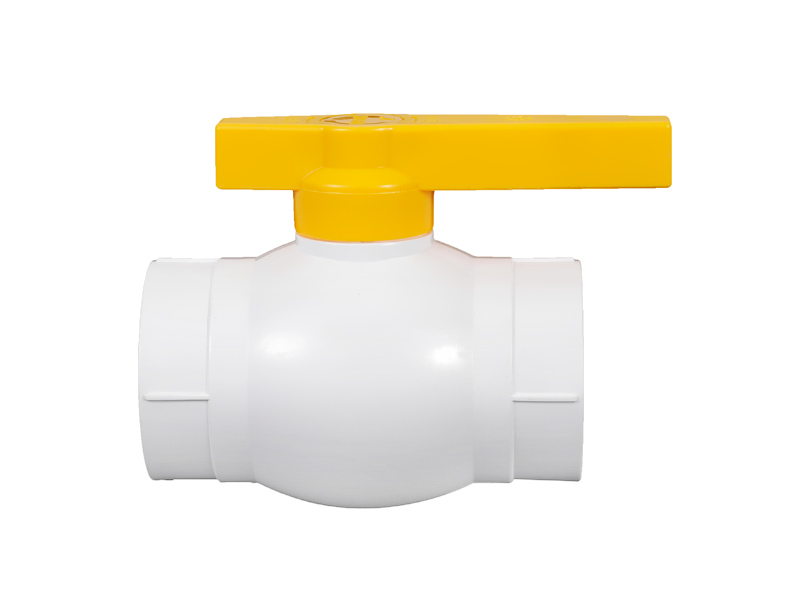

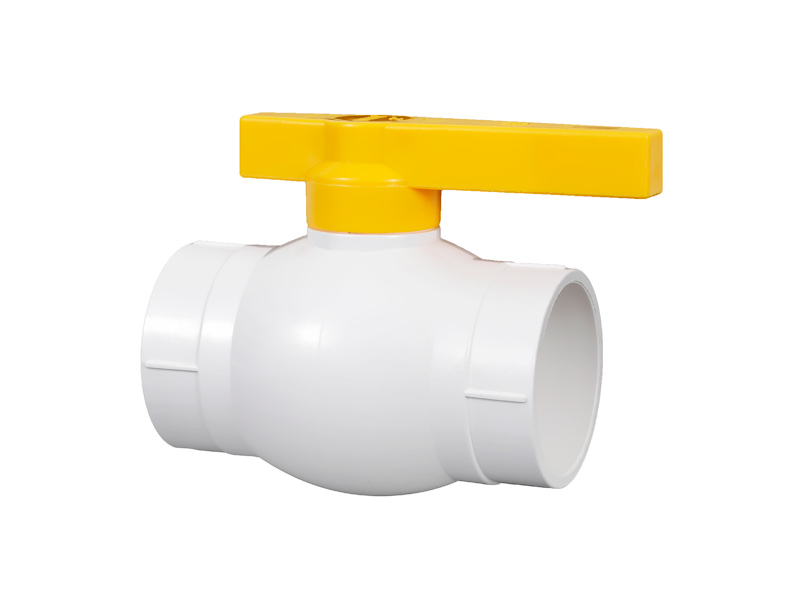

20mm 1/2"-2" PVC New Plastic Agricultural Irrigationn UPVC Ball Valve With Yellow Handle Details

Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE02091-XE02096
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
ITEM SIZE
XE02091 1/2"
XE02092 3/4"
XE02093 1"
XE02094 1-1/4"
XE02095 1-1/2"
XE02096 2"
Type: BALL VALVES
Place of Origin: Zhejiang, China
Brand Name: XE
Model Number: XE02091-XE02096
Application: other
Temperature of Media: Normal Temperature
Power: manual
Media: WATER/WEAK ACID/WEAK BASE
Port Size: 1/2"-2"
Structure: shutoff
Standard or Nonstandard: standarde
Logo: Printed or Customized
Keyword: water ball valves
Material: PVC
1. Environment friendly, non-toxic, good looking;
2. Light weight, easy to handle and transport;
3. Soft colors and excellent design, suitable for installation either exposed or hidden;
4. Wonderful ability in chemical corrosion resistance;
5. Easy and fast installation, making cost minimized;
We can produce the products according to client's order, just as the standard, the quality, the size, the color, etc.

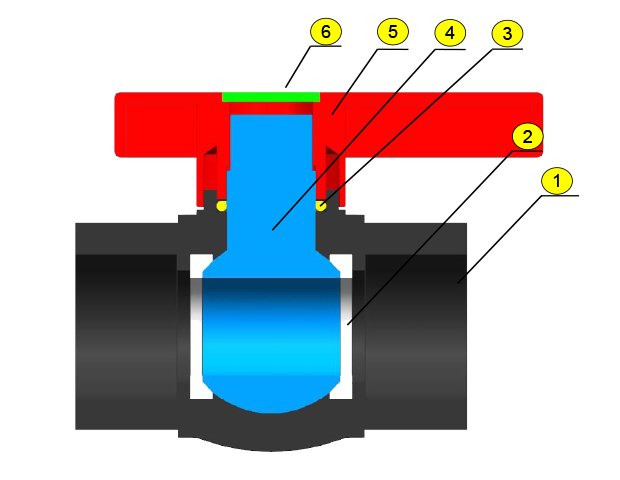

UPVC NEW BALL VALVE XE02091 - XE02096
NO. PART MATERIAL QTY SIZE STANDARD
1 BODY U-PVC 1 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" CNS, JIS, DIN, BS, ANSI, NPT, BSPT
2 SEAT SEAL TPE 2
3 STEM O-RING NBR 1
4 BALL PP 1
5 HANDLE U-PVC/ABS 1
6 CAP PP 1
