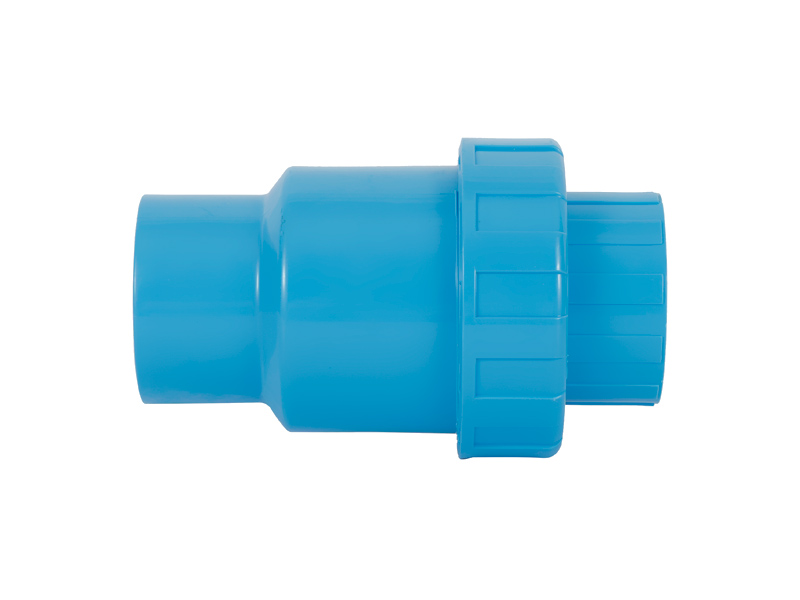

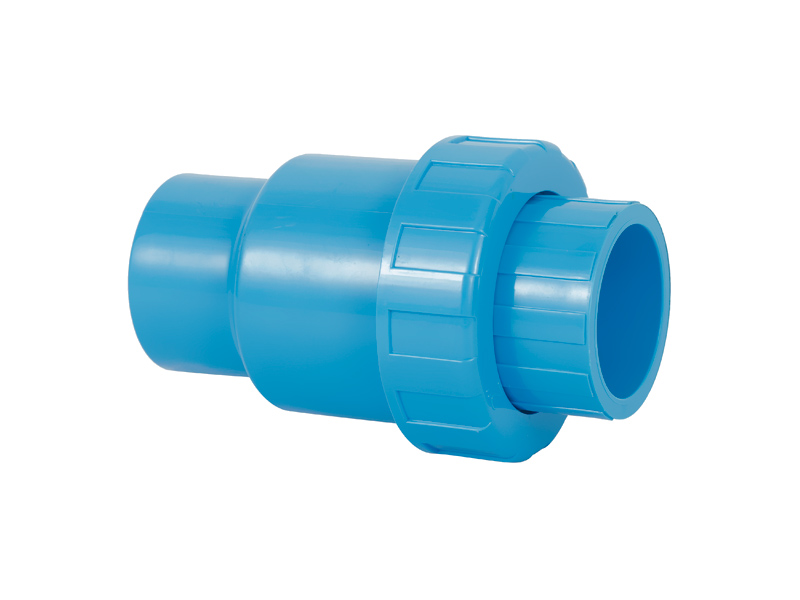

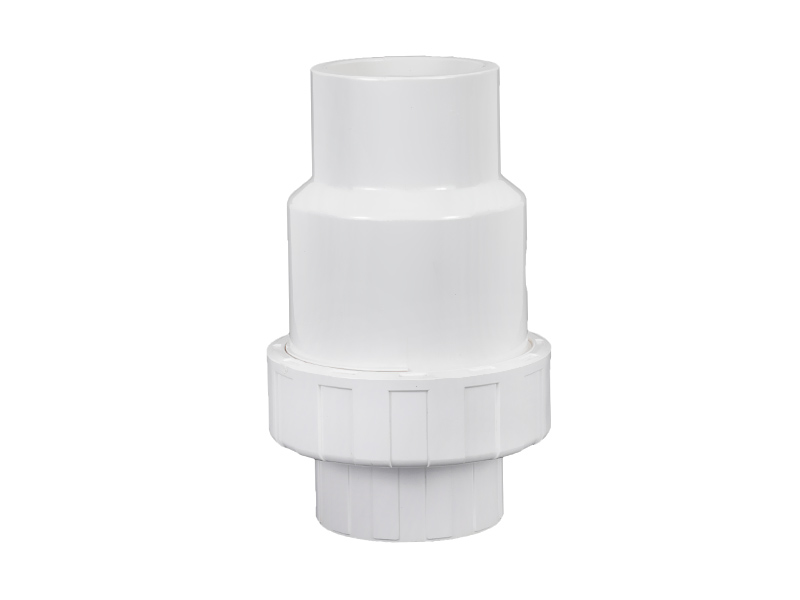

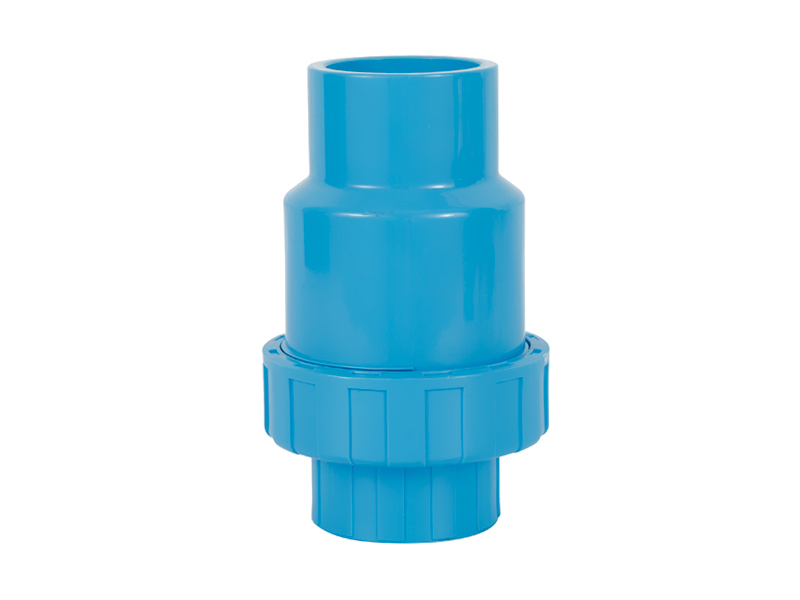

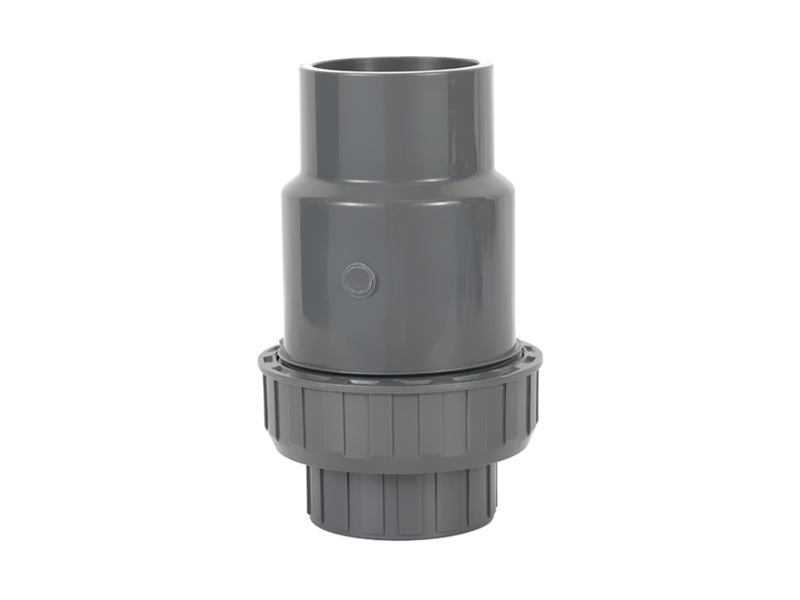

PVC Swing Check Valve For Water Pipe Details

Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE05021-XE05029
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
Type: Plastic Check Valves
Place of Origin: Zhejiang, China
Brand Name: XE
Model Number: XE05021-XE05029
Application: other
Temperature of Media: Normal Temperature
Power: manual
Media: WATER/WEAK ACID/WEAK BASE
Port Size: 1/2"-4"
Structure: shutoff
Standard or Nonstandard: Standard
Color: Many colors available for choice
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Sample: free provided
Logo: Printed or Customized
Packing: Carton, Polybag, Color Box or Customized
Certificate: ISO9001:2015, SGS, GMC, CNAS
Sort: pvc check valve

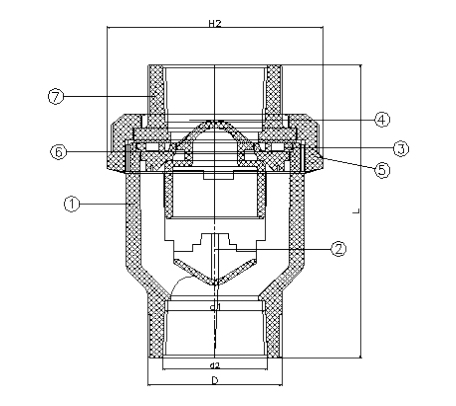

UPVC NEW CHECK VALVE XE05021 - XE05029
NO. PART MATERIAL QTY SIZE STANDARD
1 BODY U-PVC 1 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" CNS, JIS. DIN, BS, ANSI, NPT, BSPT
2 SPRING SS201 2
3 O-RING NBR 1
4 BALL U-PVC 2
5 SEAT CARRIER U-PVC 1
6 UNION NUT U-PVC 1
7 BODY U-PVC 1
