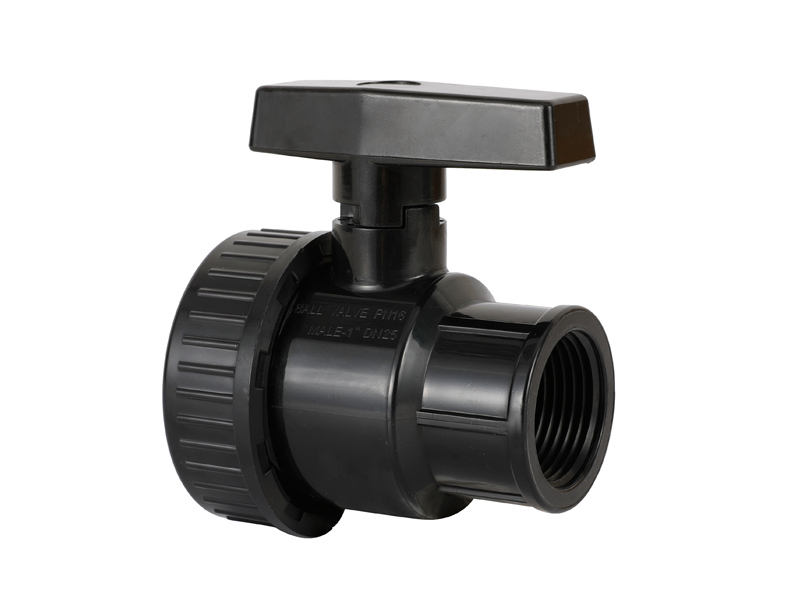

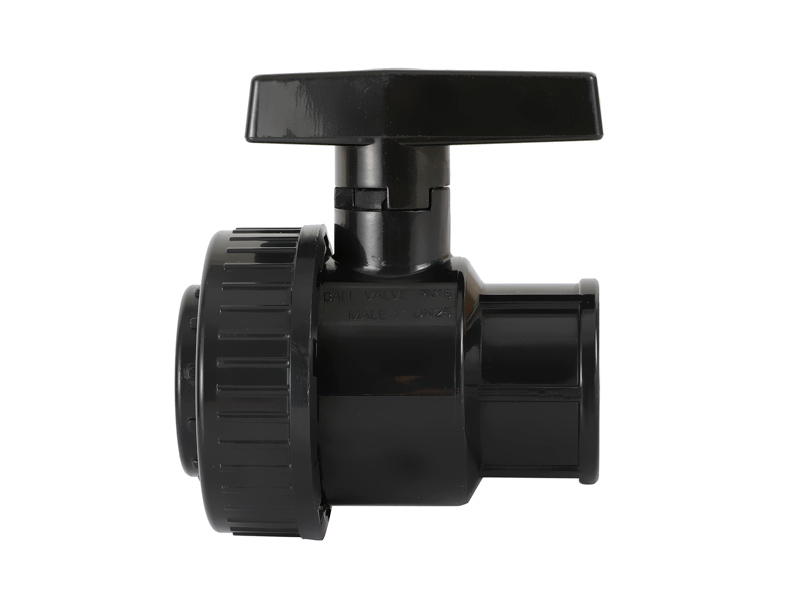

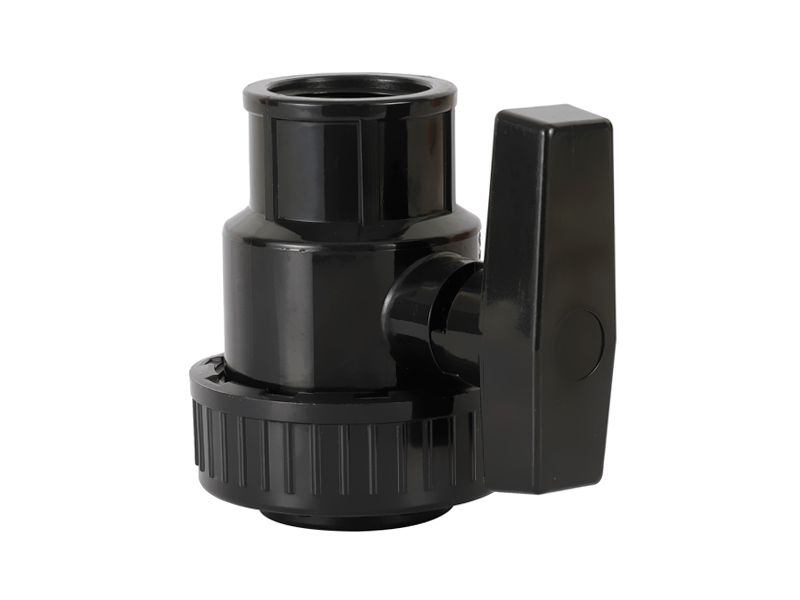

UPVC New MF Single Union Ball Valve Details

Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE05012-XE05016
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
Type: BALL VALVES
Place of Origin: Zhejiang, China
Brand Name: XE
Application: other
Temperature of Media: Normal Temperature
Power: manual
Media: WATER/WEAK ACID/WEAK BASE
Port Size: 3/4-2"
Structure: shutoff
Standard or Nonstandard: standard
Logo: Printed or Customized
Material: U-PVC
1. Environment friendly, non-toxic, good looking;
2. Light weight, easy to handle and transport;
3. Soft colors and excellent design, suitable for installation either exposed or hidden;
4. Wonderful ability in chemical corrosion resistance;
5. Easy and fast installation, making cost minimized;
We can produce the products according to client's order, just as the standard, the quality, the size, the color, etc.

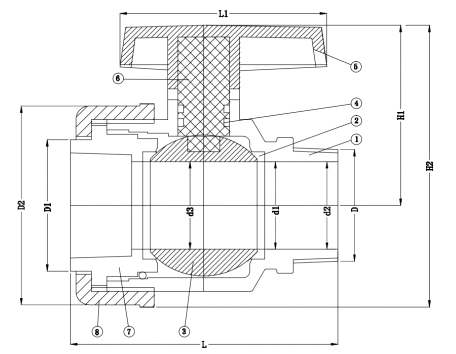

UPVC NEW SINGLE UNION BALL VALVE XE05012 - XE05016
NO. PART MATERIAL QTY SIZE STANDARD
1 BODY U-PVC 1 3/4", 1", 1-1/4",
1-1/2", 2"
NPT, BSPT
2 SEAT SEAL TPE 2
3 BALL U-PVC 1
4 O-RING NBR 2
5 HANDLE ABS 1
6 STEM U-PVC 1
7 SEAT CARRIER U-PVC 1
8 UNION NUT U-PVC 1
