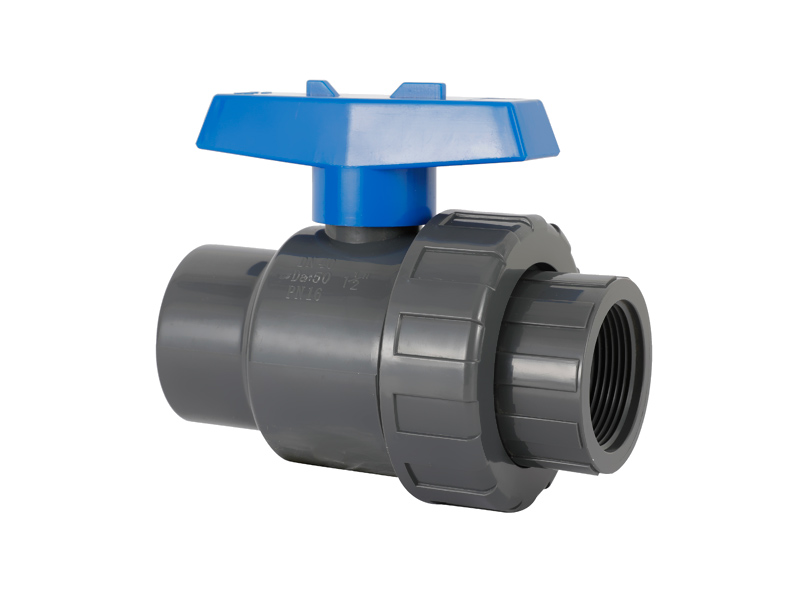

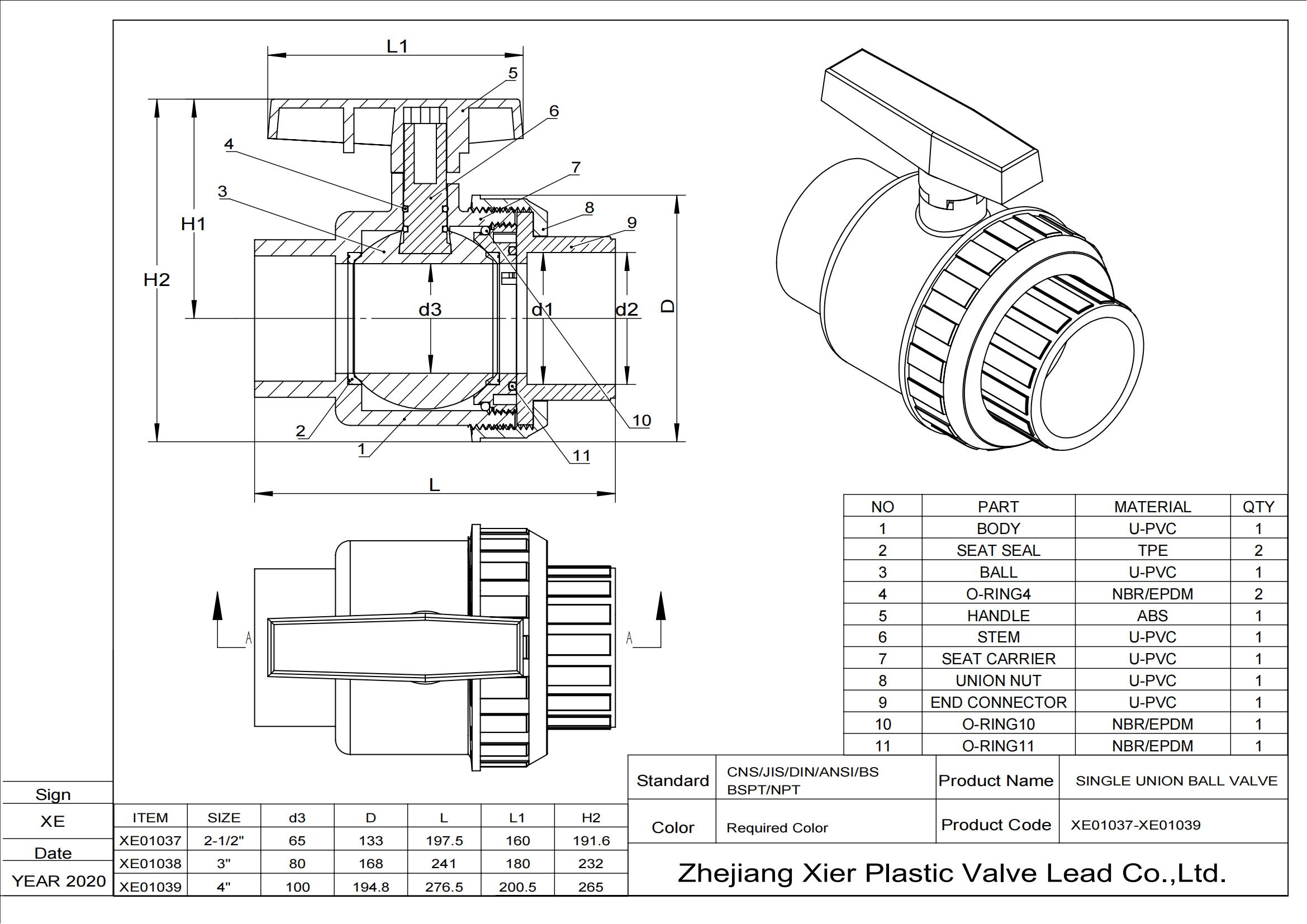

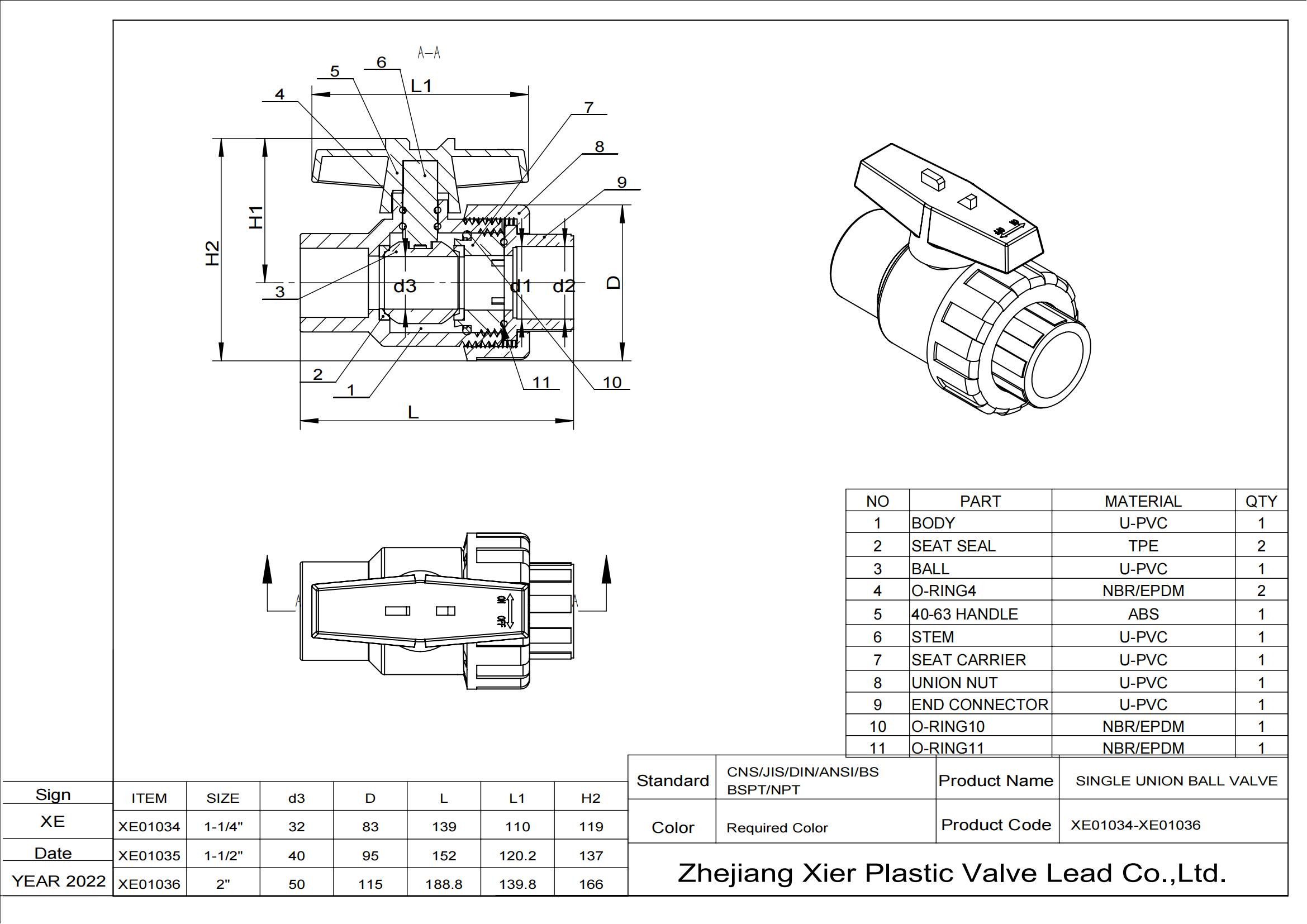

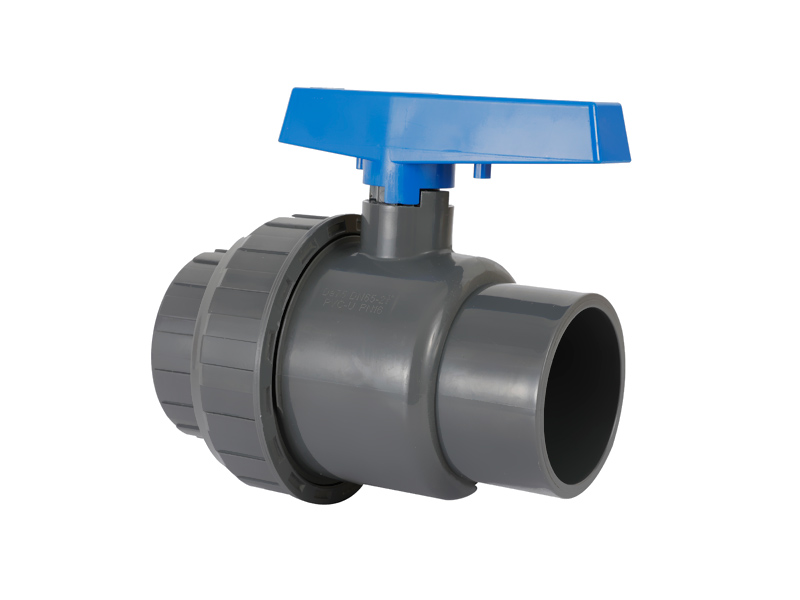

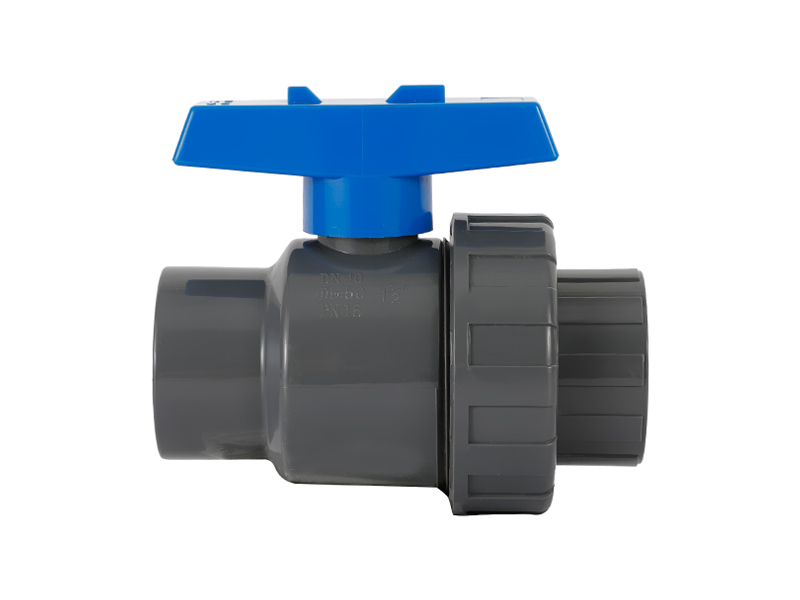

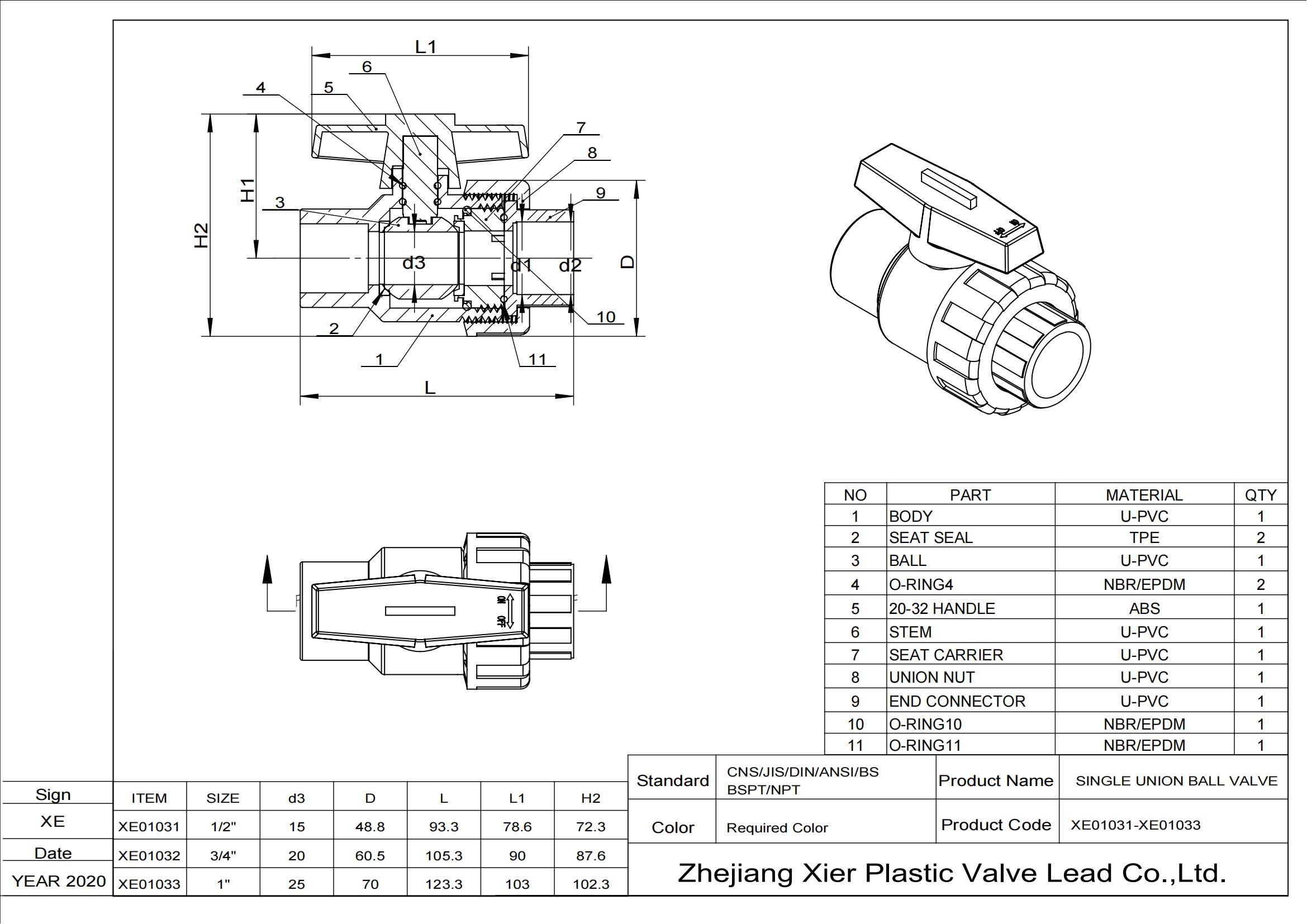

| UPVC SINGLE UNION BALL VALVE XE01031 - XE01039 | |||||||

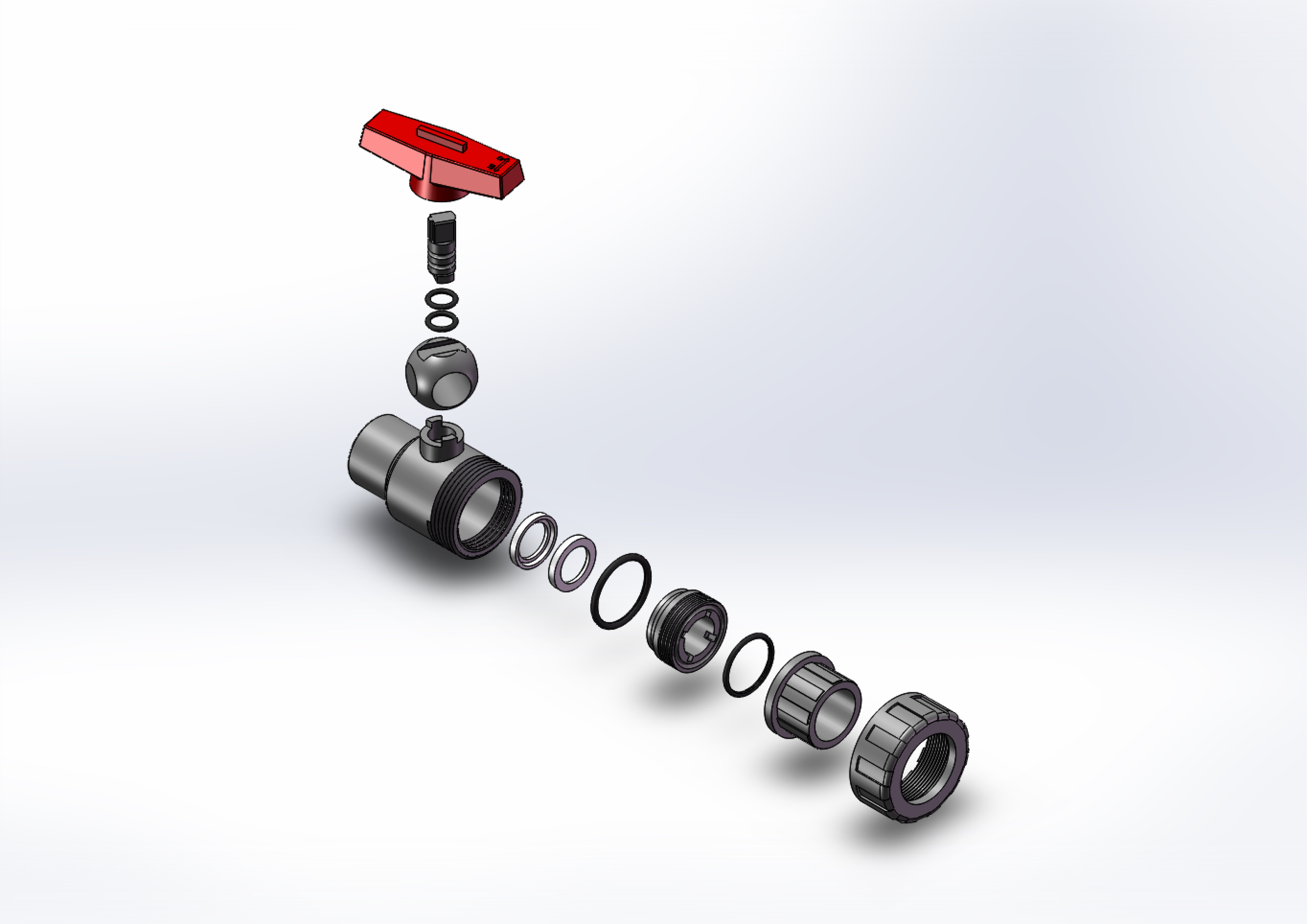

| NO. | PART | MATERIAL | QTY | SIZE | STANDARD | ||
| 1 | BODY | U-PVC | 1 | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" |
CNS, JIS, DIN, BS, ANSI, NPT, BSPT |
||
| 2 | SEAT SEAL | TPE | 2 | ||||
| 3 | BALL | U-PVC | 1 | ||||
| 4,10,11 | O-RING | NBR | 2 | ||||
| 5 | HANDLE | ABS | 1 | ||||
| 6 | STEM | U-PVC | 1 | ||||
| 7 | SEAT CARRIER | U-PVC | 1 | ||||
| 8 | UNION NUT | U-PVC | 1 | ||||
| 9 | END CONNECTOR | U-PVC | 1 | ||||
