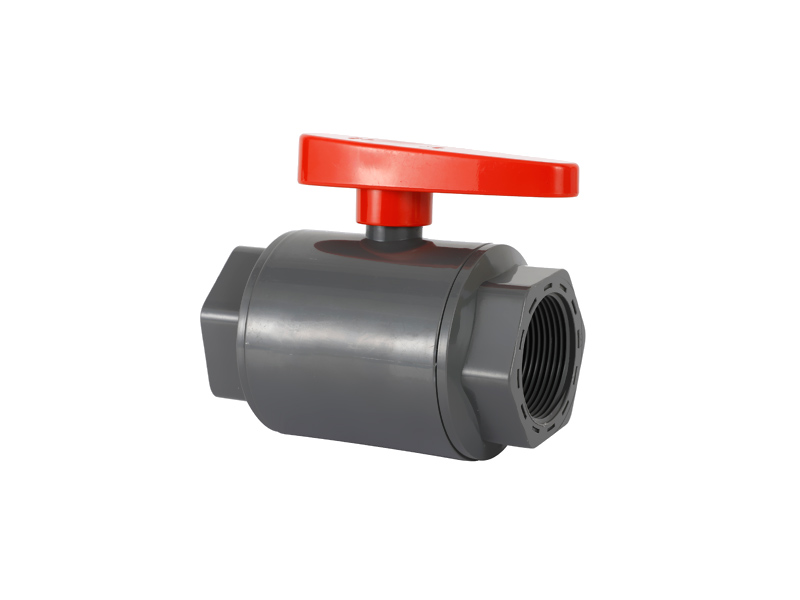

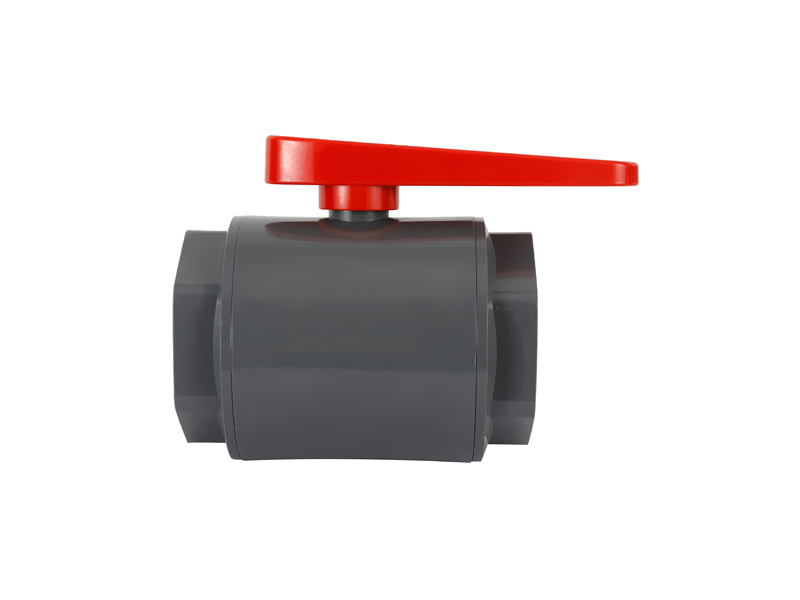

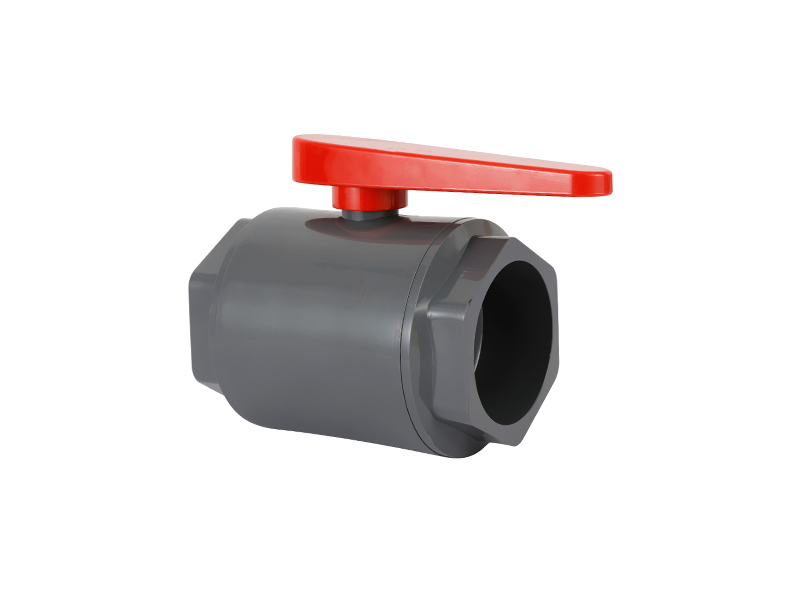

1/2"-4'' Plastic UPVC 3 Piece Water Ball Valve Details

Use: Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Style Number: XE05071-XE05079
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Color: Many colors available for choice
Material: UPVC
Sample: Free provided
Certificate: ISO9001:2015, SGS, GMC, CNAS
Delivery: 7-30days
Packing: Carton, Polybag, Color Box or Customized
Type: BALL VALVES
Place of Origin: Zhejiang, China
Brand Name: XE
Model Number: XE05071-XE05079
Application: other
Temperature of Media: Normal Temperature
Power: manual
Media: WATER/WEAK ACID/WEAK BASE
Port Size: 1/2"-4"
Structure: shutoff
Standard or Nonstandard: standard
Color: Many colors available for choice
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Sample: free provided
Logo: Printed or Customized
Packing: Carton, Polybag, Color Box or Customized
Certificate: ISO9001:2015, SGS, GMC, CNAS

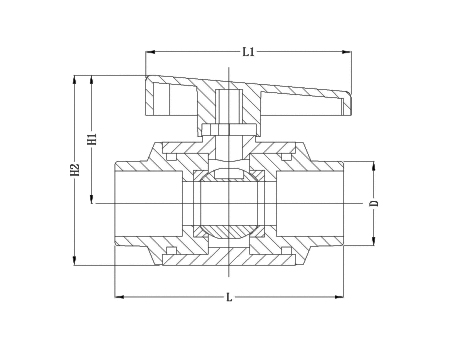

UPVC THREE PIECES BALL VALVE XE05071 - XE05079
NO. PART MATERIAL QTY SIZE STANDARD
1 BODY PVC 1 1/2", 3/4", 1", 1-1/4",
1-1/2", 2", 2-1/2", 3", 4"
CNS, JIS, DIN, BS,
ANSI, NPT, BSPT
2 SEAT SEAL TPE 2
3 STEM O-RING NBR 1
4 BALL PVC 1
5 STEM POM 1
6 HANDLE ABS 1
